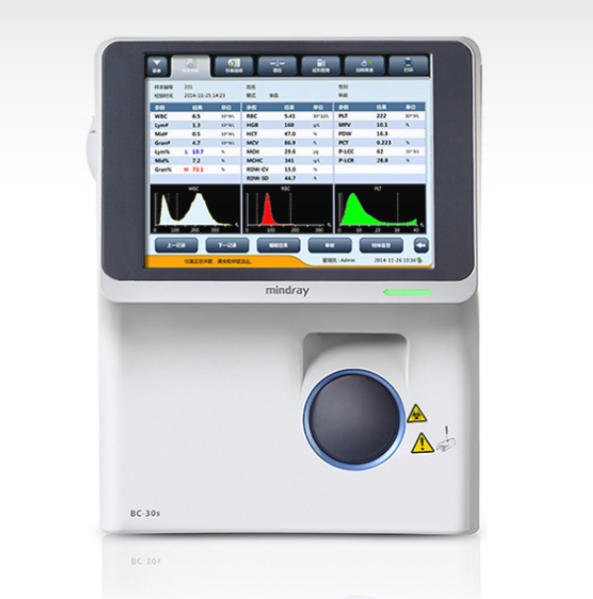

Mindray BC-30S Fully Automated Three-Piece Blood Cell Analyzer
Introduction:
Provides text alarm messages,Compact and simple design,Multiple modes,Reliable performance,Economical and affordable
参考价：
US$8,000–12,000 / unit
Overview
· 3-part differential hematology analyzer designed for small and primary laboratories.
· CBC + 3-DIFF, with 21 parameters and 3 histograms.
· Throughput of up to 70 samples/hour.
· 9 μL whole-blood sample volume, suitable for low-volume and pediatric testing.
· 10.4-inch TFT touchscreen for intuitive operation.
· Supports open-vial sampling and prediluted mode.
· Stores up to 500,000 results with numerical and graphical information.
· Compact design with integrated lyse storage to save laboratory space.
· Supports bi-directional LIS, HL7, LAN, USB and optional Wi-Fi connectivity.
Specifications
| Specification | Details |
|---|---|
| Product Name | Mindray BC-30s |
| Product Type | Auto Hematology Analyzer |
| Differential Type | 3-Part Differential |
| Testing Mode | CBC + 3-DIFF |
| Parameters | 21 parameters |
| Histograms | 3 histograms: WBC, RBC, PLT |
| Detection Principle | Impedance method for WBC, RBC and PLT counting |
| Hemoglobin Method | Cyanide-free reagent |
| Throughput | Up to 70 samples/hour |
| Whole Blood Sample Volume | 9 μL |
| Prediluted Sample Volume | 20 μL |
| WBC Linearity | 0–200 × 10⁹/L |
| RBC Linearity | 0–8.00 × 10¹²/L |
| HGB Linearity | 0–280 g/L |
| PLT Linearity | 0–4000 × 10⁹/L |
| WBC Precision | ≤2% CV (7.0–15.0 × 10⁹/L) |
| RBC Precision | ≤1.5% CV (3.5–6.5 × 10¹²/L) |
| HGB Precision | ≤1.5% CV (100–180 g/L) |
| PLT Precision | ≤4.0% CV (150–500 × 10⁹/L) |
| Display | 10.4-inch TFT Touch Screen |
| Data Storage | Up to 500,000 results |
| Connectivity | LAN, USB, HL7, bi-directional LIS |
| USB Ports | 4 |
| Printing | Built-in thermal recorder; external printer optional |
| Reagents | M-30D Diluent, M-30CFL Lyse, Probe Cleanser |
| Operating Temperature | 10–35°C |
| Operating Humidity | 10–90% |
| Air Pressure | 70–106 kPa |
| Power Supply | 100–240 V, ≤300 VA, 50/60 Hz |
| Dimensions | 410 × 300 × 400 mm |
| Weight | ≤20 kg |
Product Details
Compact 3-Part Hematology Testing
The BC-30s is designed for small laboratories that need routine CBC and 3-part differential testing in a compact system. It provides 21 hematology parameters and three histograms covering WBC, RBC and PLT analysis.
Low Sample Volume
The analyzer requires only 9 μL of whole blood and 20 μL in prediluted mode. The low sample requirement makes it suitable for pediatric and other applications where sample volume is limited.
Simple Operation
A 10.4-inch TFT touchscreen provides an intuitive user interface. Open-vial sampling simplifies routine operation, while the compact footprint helps laboratories make better use of limited bench space.
Efficient Laboratory Workflow
With a throughput of up to 70 samples per hour and storage for up to 500,000 results, the BC-30s can support routine testing in small hospitals, clinics and primary laboratories. LAN connectivity and bi-directional LIS communication are available for laboratory information management.
Reduced Reagent Consumption
Mindray's updated fluidic design eliminates the need for cleanser and EZ reagent in the testing process, helping reduce reagent consumption and operating costs. Flexible reagent packaging is also available for laboratories with different daily workloads.
