Mindray Premium Ultrasound System for Radiology Resona A20
Introduction:
Powered by the Acoustic Intelligence Technology platform, it has pushed ultrasound imaging performance to a new level, helping clinical experts to achieve accurate diagnosis and academic exploration.
参考价：
US$150,000–300,000 / unit
Overview
· Premium diagnostic ultrasound system
· Acoustic Intelligence Technology (AIT) platform
· AFM transducer technology
· FreeWave Tx/Rx technology
· FreeBeam beamforming
· HD Scope+ advanced image enhancement
· Ultra-Micro Angiography (UMA)
· Super Resolution CEUS
· Sound Touch Elastography
· STVi viscoelastic tissue analysis
· Advanced vascular quantification
· 27-inch high-resolution display
· 15.6-inch touchscreen
· 5 active probe connectors
· Built-in battery
· Motorized and ergonomic control panel
· Modular upgradeable platform
· Five-year warranty from Mindray in applicable markets
Specifications
| Specification | Resona A20 |
| Product Type | Premium Diagnostic Ultrasound System |
| Manufacturer | Mindray |
| Model | Resona A20 |
| Imaging Platform | Acoustic Intelligence Technology (AIT) |
| Main Display | 27-inch high-resolution color LCD |
| Main Display Resolution | 2560 × 1440 |
| Touchscreen | 15.6-inch |
| Touchscreen Resolution | 1920 × 1080 |
| Active Probe Connectors | 5 |
| Pen Probe Connector | 1 |
| Built-in Battery | Yes |
| Battery Capacity | 6400 / 6600 mAh |
| Battery Operating Time | ≥60 minutes |
| Power Supply | 100–240 V, 50/60 Hz |
| Input Power | 1170 VA |
| Probe Types | Convex, Linear, Phased Array, Intracavity, Bi-planar, 4D Volume |
| Imaging Modes | B, M, Color Doppler, Power Doppler, PW, CW, TDI |
| Advanced Imaging | iBeam, iClear+, Glazing Flow, HD Scope+ |
| Elastography | STE, STQ, STVi |
| Contrast Imaging | UWN+ CEUS, HiFR CEUS, Super Resolution CEUS |
| Vascular Imaging | UMA, V Flow, PWV Analysis |
| Advanced Applications | Smart Breast, Smart Thyroid, Smart Pelvic, Smart FLC, AutoEF, Smart Fetal HR |
| Connectivity | DICOM |
| Dimensions | Approx. 1035 × 518 × 1090 mm in contracted state |
| Weight | Approx. 160 ± 15 kg |
Product Details
1. Acoustic Intelligence Technology
The AIT platform combines advanced acoustic data acquisition, beamforming, image processing and computing technologies. It is designed to automatically optimize ultrasound data and provide consistent, high-quality diagnostic images.

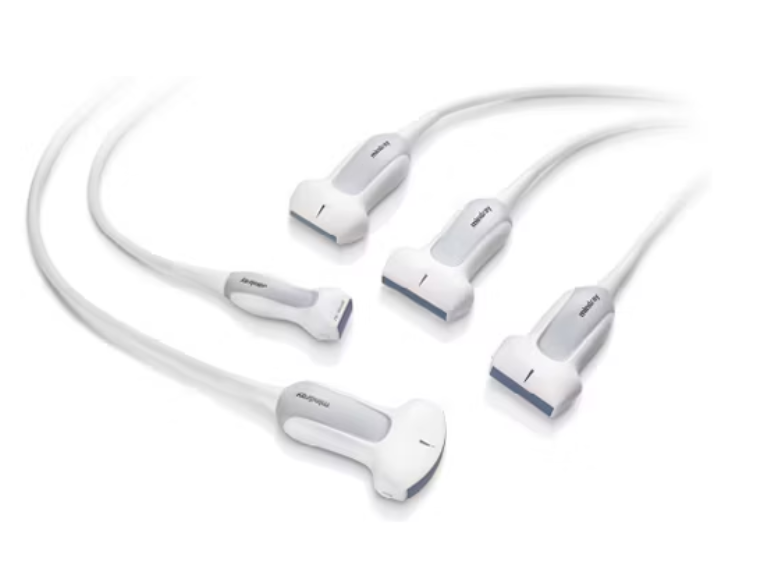

2. AFM Transducer Technology
The Acoustic Free Matrix (AFM) transducer platform improves acoustic energy conversion and provides broad bandwidth and advanced focusing capabilities. It works together with AIT to enhance imaging performance across different clinical applications.

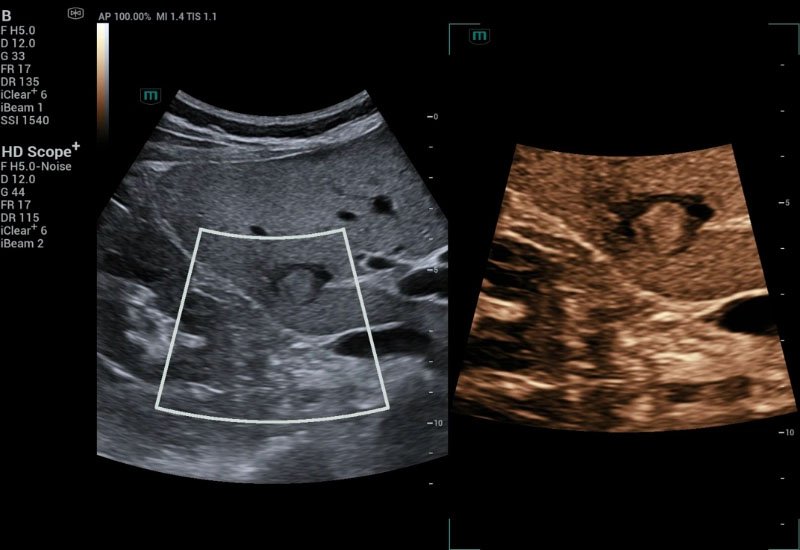

3. HD Scope+
HD Scope+ uses adaptive beamforming to enhance the target lesion area and improve visualization of subtle tissue details. It is designed for applications such as liver, thyroid and breast imaging.
4. Advanced Microvascular Imaging
Ultra-Micro Angiography (UMA) provides high-sensitivity visualization of slow and microvascular blood flow, while Super Resolution CEUS is designed to visualize microvascular structures at very high spatial resolution.

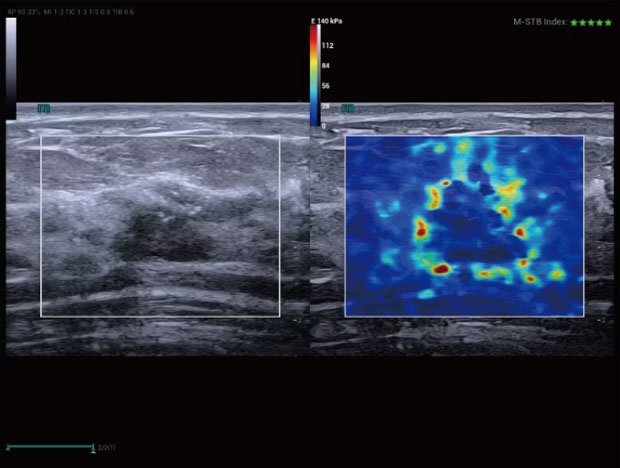

5. Quantitative Tissue Analysis
The system supports Sound Touch Elastography (STE), STQ and STVi for quantitative assessment of tissue stiffness and viscoelastic properties. These technologies can support liver, breast, thyroid and other tissue examinations.
6. Intelligent Workflow
The Resona A20 integrates automated tools such as Smart Planes, Smart Breast, Smart Thyroid, Smart Pelvic, AutoEF and vascular analysis tools to reduce repetitive operations and improve examination efficiency.
7. Ergonomic Design
The system features a 27-inch high-resolution monitor, 15.6-inch touchscreen, motorized control panel and adjustable display arm. The built-in battery provides approximately one hour of examination autonomy, improving flexibility in clinical environments.
