United Imaging Next Generation Remote-Vision Mobile DR uDR 380i Pro
Introduction:
United Imaging's third generation mobile DR is equipped with the advanced tablet X-ray console, integrating uVision, built-in microphone and X-ray imaging acquisition system in one. The breakthrough ultra-narrow body design and high capacity power system redefines the boundary of mobility in mobile DR imaging.
参考价：
US$65,000–90,000 / Unit
Overview
The uDR 380i Pro is a third-generation mobile digital radiography (DR) system developed by United Imaging Healthcare for point-of-care X-ray imaging. It combines a remote-vision X-ray console, built-in microphone, X-ray image acquisition system, ultra-compact body design, and high-capacity power system to provide flexible mobile radiography in demanding clinical environments.
Designed for hospitals, emergency departments, intensive care units, and bedside imaging, the uDR 380i Pro focuses on three core capabilities: remote vision and control, highly flexible mobility, and high-quality digital imaging. Its 47 cm ultra-narrow body allows the system to move through narrow corridors and tight spaces, while the electric propulsion assistance helps operators maneuver the system with one hand.
The system's remote vision technology integrates a built-in collimator camera with a multifunctional remote tablet. Operators can monitor patients, adjust APR protocols, and preview acquired images from a radiation-free distance, helping improve workflow efficiency and support safer mobile radiography procedures.
The uDR 380i Pro also features a high-capacity lithium battery and lightweight chassis, supporting up to 80 km of continuous travel or 800 X-ray exposures on a single charge, according to United Imaging's stated conditions.
Specifications
| Specification | Details |
| Product Name | uDR 380i Pro |
| Product Type | Mobile Digital Radiography System |
| Application | Mobile X-ray / Point-of-Care Radiography |
| Manufacturer | United Imaging Healthcare |
| System Generation | Third-generation Mobile DR |
| Body Width | 47 cm |
| Detector Type | Lightweight Wireless Flat Panel Detector |
| Detector Pixel Pitch | 125 μm |
| Battery Type | High-capacity lithium battery |
| Travel Range | Up to 80 km per charge |
| X-ray Exposures | Up to 800 exposures per charge |
| Positioning System | Adjustable six-axis column |
| Propulsion | Electric propulsion assistance |
| Remote Control | Multifunctional remote tablet / uVision |
| Patient Monitoring | Supported through built-in collimator camera |
| Remote Exposure | Supported |
| APR Protocol Adjustment | Supported |
| Image Preview | Supported |
| Image Processing | Advanced X-ray scatter control algorithm |
| Clinical Applications | Chest AP, Lumbar Vertebrae AP, Lumbar Vertebrae LAT, Foot AP Oblique |
The official global product page specifies the 47 cm body width, 125 μm detector, six-axis positioning system, high-capacity lithium battery, and the stated 80 km/800-exposure endurance.
The U.S. version of the official product page additionally identifies a 50 kW high-voltage generator, a 14 × 17 inch wireless flat panel detector, and a cesium iodide (CsI)-based detector configuration. These specifications can be included when the product listing is intended for markets where this configuration applies.
Note: Product configurations and specifications may vary by market, regulatory version, or optional configuration. Buyers should confirm the final technical configuration with United Imaging Healthcare before procurement.
Product Details
1. Remote Vision and Control

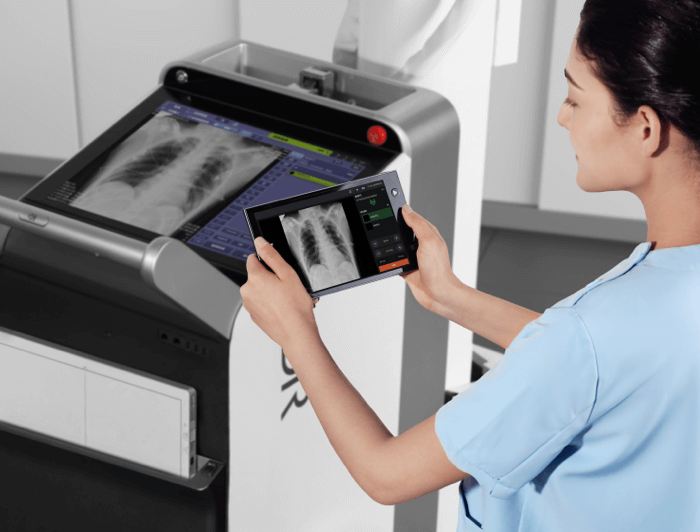

The uDR 380i Pro integrates a **built-in collimator camera** with a multifunctional remote tablet.
The remote-vision system allows operators to monitor the patient's position and communicate with the patient while operating the imaging workflow remotely. It also supports APR protocol adjustment and image preview.
This design allows key imaging operations to be performed from a **radiation-free distance**, helping improve the workflow of mobile X-ray examinations.
Key functions include:
* Patient status monitoring
* Patient communication
* APR protocol adjustment
* Remote exposure operation
* Image preview
* Remote positioning guidance
United Imaging's current annual report also describes the uDR 380i Pro/380i as having remote visual exposure technology supporting real-time monitoring, voice guidance, remote parameter adjustment, and remote exposure.
2. 360° Positioning Coverage

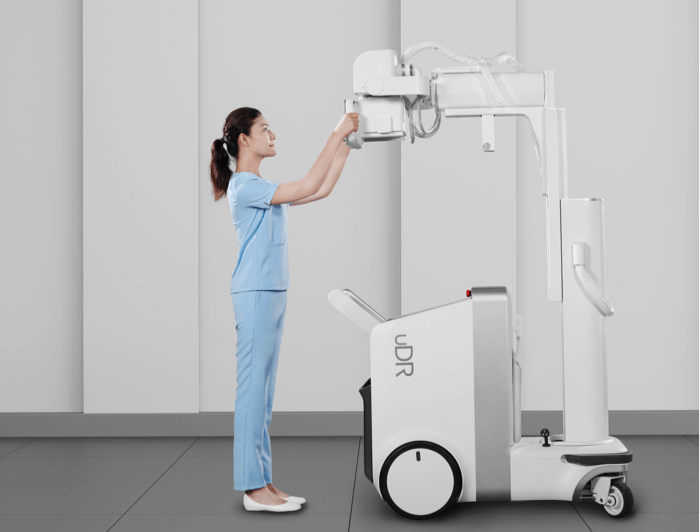

The uDR 380i Pro is equipped with an **adjustable six-axis column** designed to provide flexible positioning for bedside radiography.
The six-axis positioning capability allows the X-ray tube to be adjusted according to different examination requirements, making the system suitable for a wide range of ER and ICU applications.
This is particularly useful for bedside examinations where the patient's position and surrounding equipment may restrict the available operating space.

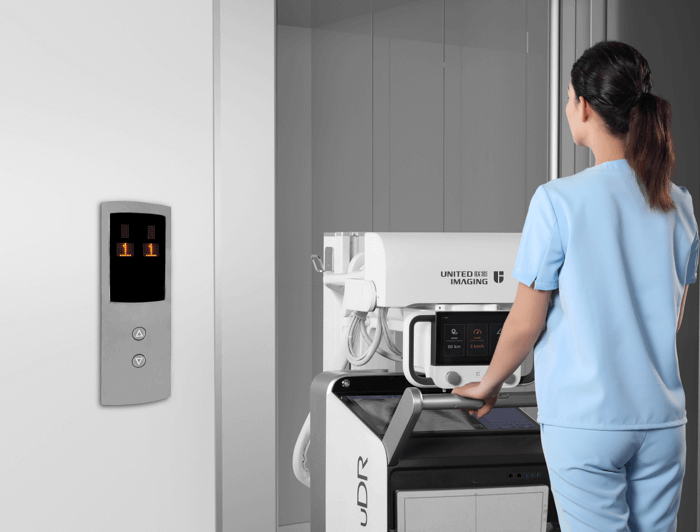

3. Ultra-Compact 47 cm Body
One of the key design features of the uDR 380i Pro is its **47 cm ultra-narrow body**.
The compact chassis is designed to move through:
* Narrow hospital corridors
* Tight clinical spaces
* Small elevators
* Crowded departments
* Patient rooms
* Bedside environments
The narrow body is combined with an electric propulsion system, allowing the operator to maneuver the equipment with one hand.
This makes the uDR 380i Pro particularly suitable for mobile imaging where conventional fixed DR systems cannot be easily accessed.
4. Electric Propulsion Assistance
The uDR 380i Pro features an **electric propulsion assistance system** to reduce the physical effort required to move the equipment.
According to United Imaging, the system can be easily maneuvered with one hand with the assistance of the electric propulsion system.
The feature is intended to improve equipment mobility in hospital environments and make repeated bedside imaging more convenient for radiographers and other medical staff.

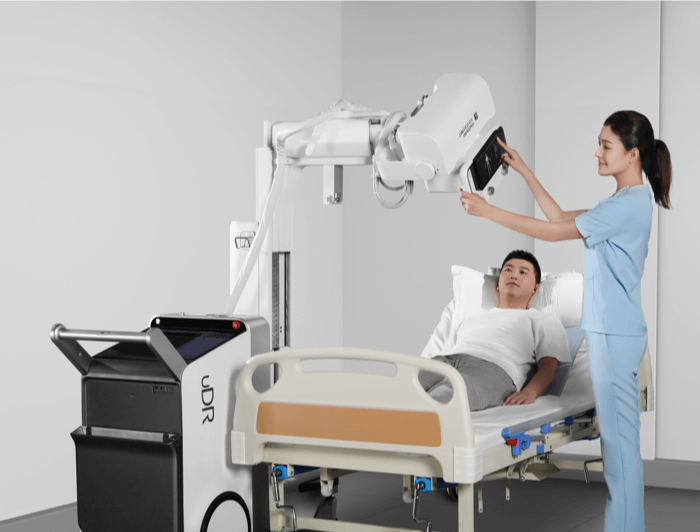

5. Bedside Fine-Tuning Control
The system incorporates intuitive fine-tuning buttons that allow operators to make precise adjustments to the equipment position at the bedside.
This function is designed to help operators achieve accurate positioning without repeatedly moving the entire system, which can be particularly useful when performing bedside examinations in restricted spaces.
6. Ultra-Long Battery Range
The uDR 380i Pro uses a **high-capacity lithium battery** combined with a lightweight chassis.
United Imaging states that the system can support:
* **Up to 80 km of continuous travel**
* **Up to 800 X-ray exposures**
with one charge.
The Chinese official product page notes that the 80 km/800-exposure figures are based on **laboratory test conditions**, so actual operating performance may vary depending on workload and operating environment.
7. Lightweight Wireless Flat Panel Detector
The uDR 380i Pro uses a **lightweight wireless flat panel detector** with a **125 μm pixel pitch**.
United Imaging states that the detector can provide clear visualization of microstructures and help increase diagnostic confidence.
The U.S. product page further describes the wireless detector as providing high detective quantum efficiency (DQE) and spatial resolution for high-quality X-ray imaging at a lower dose.
For the U.S. configuration, the manufacturer specifies a **14 × 17 inch detector**.
8. X-ray Tube and High-Voltage Generator
The uDR 380i Pro combines a powerful high-voltage generator with a large-capacity X-ray tube.
This imaging chain is designed to maintain image quality during high-volume clinical use and provide sufficient flexibility for different patient types and examination requirements.
The U.S. product page specifies a **50 kW high-voltage generator** for the uDR 380i Pro.
9. Advanced Image Processing
The system incorporates advanced digital image-processing technology to improve image quality while supporting lower-dose imaging.
United Imaging specifically highlights an **advanced X-ray scatter control algorithm**, which is designed to provide high image quality under low-dose conditions.
The Chinese product page also highlights multiple post-processing technologies and a **virtual grid** function for improving image quality.
Clinical Applications
The uDR 380i Pro is designed for mobile and bedside digital radiography and is particularly suitable for environments such as emergency departments and intensive care units.
The official product page demonstrates the following clinical applications:
Chest AP
Chest anteroposterior imaging is one of the primary bedside applications demonstrated for the system.
Lumbar Vertebrae AP
The system can be used for anteroposterior radiography of the lumbar vertebrae.
Lumbar Vertebrae LAT
The system supports lateral lumbar spine imaging as demonstrated by United Imaging.
### Foot AP Oblique
The system can also perform oblique radiography of the foot.
The U.S. United Imaging page additionally presents clinical images for **knee AP, elbow AP, and skull AP** examinations.
Key Features
Remote-Vision Imaging
Built-in camera and remote tablet enable patient monitoring, communication, protocol adjustment, remote exposure, and image preview from a radiation-free distance.
47 cm Ultra-Narrow Design
The compact body is designed for movement through narrow corridors and tight clinical spaces.
Six-Axis Positioning
The adjustable six-axis column provides flexible positioning for bedside, ER, and ICU applications.
Long Battery Endurance
The high-capacity lithium battery supports up to 80 km of continuous travel or 800 X-ray exposures per charge under specified conditions.
125 μm Wireless Detector
The lightweight wireless flat panel detector provides high-resolution digital imaging and visualization of fine anatomical structures.
Advanced Image Processing
X-ray scatter control and other image-processing technologies support high image quality at lower doses.
Easy Maneuverability
Electric propulsion assistance enables convenient one-hand operation and improves mobility in hospital environments.
Manufacturer
United Imaging Healthcare (UIH) is a Chinese medical imaging and healthcare technology company. Its product portfolio includes CT, MRI, molecular imaging, digital radiography, mammography, and mobile C-arm systems.
The uDR 380i Pro is part of United Imaging's digital radiography portfolio and is positioned as a mobile DR solution for point-of-care imaging.
