United Imaging The World's First Total-Body PET/CT uEXPLORER
Introduction:
564,480 crystals bring about an ultra - large axial field - of - view coverage. The 40 - fold increase in sensitivity significantly enhances the lesion detection efficiency and image quality. The computational capacity has increased by more than 100 times.
参考价：
US$5,000,000–10,000,000 / unit
Overview
· Total-body PET/CT with a 194 cm axial PET field of view
· Whole-body imaging in one bed position
· 564,480 PET crystal elements
· 176 cps/kBq system sensitivity
· 2.9 mm NEMA spatial resolution
· Integrated-light-guide digital SiPM detector
· 160-slice CT with 0.25 mm isotropic spatial resolution
· Up to 40× sensitivity improvement compared with conventional PET/CT systems, according to United Imaging
· Total-body dynamic imaging with high temporal resolution
· Potential for ultra-low-dose imaging
· PET imaging in as little as 30 seconds at standard tracer dose
· 76 cm PET aperture
· Designed for clinical imaging and advanced molecular imaging research
Specifications
| Specification | uEXPLORER |
| Product Type | Total-Body PET/CT System |
| Manufacturer | United Imaging Healthcare |
| Model | uEXPLORER |
| PET Type | Digital PET |
| Axial PET FOV | 194 cm |
| PET Crystal Elements | 564,480 |
| PET Crystal Size | 2.76 mm LYSO |
| NEMA Spatial Resolution | 2.9 mm |
| System Sensitivity | 176 cps/kBq |
| CT Detector | 160-slice |
| CT Spatial Resolution | 0.25 mm isotropic |
| PET Aperture | 76 cm |
| PET Detector Technology | Digital SiPM with Integrated-Light-Guide |
| PET Configuration | 8-unit design |
| Total-Body Coverage | One bed position |
| Dynamic Imaging | Total-body dynamic PET |
| Standard-Dose Fast Scan | As little as 30 seconds |
| Total-Body Reconstruction | Within approximately 8 minutes |
| Clinical Applications | Oncology, Neurology, Cardiology, Whole-body Molecular Imaging |
| Research Applications | Pharmacokinetics, Drug Development, Cell Tracking, Multisystem Disease Research |
Product Details
1. 194 cm Total-Body PET FOV
The uEXPLORER provides a 194 cm axial PET field of view, allowing the entire body to be captured in a single bed position. This enables simultaneous visualization of tracer distribution across multiple organs.

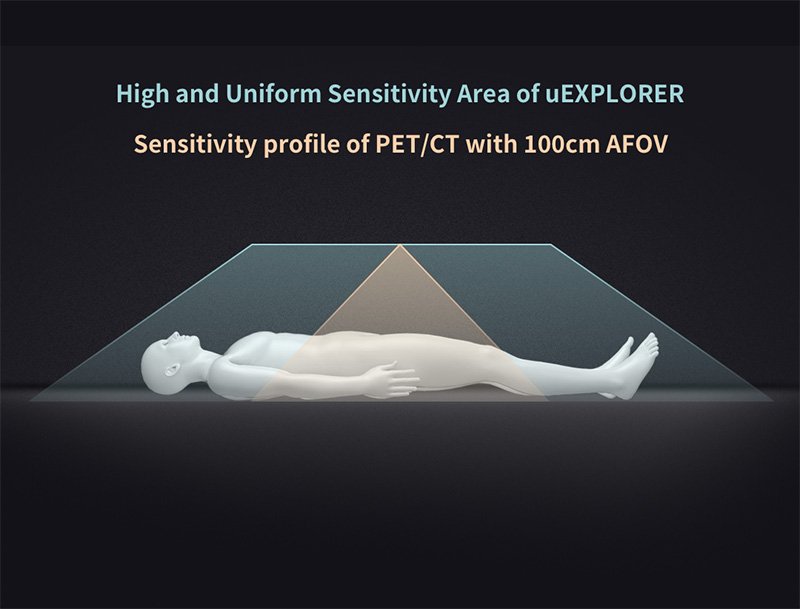

2. Ultra-High Sensitivity
Its 176 cps/kBq sensitivity and cross-coincidence technology significantly increase photon detection efficiency. United Imaging reports up to 40× higher sensitivity compared with conventional PET/CT systems.

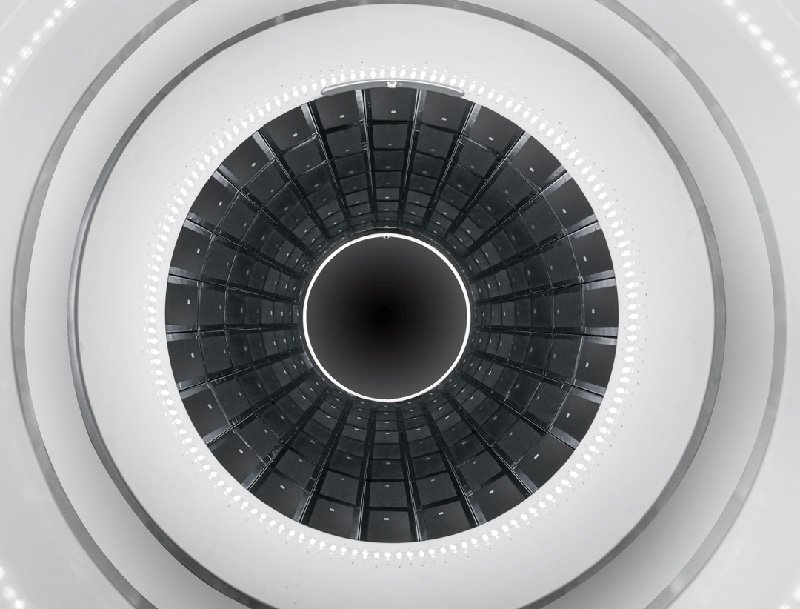

3. Digital SiPM Detector
The integrated-light-guide digital detector uses SiPM technology with fine LYSO crystals to improve light collection efficiency, spatial resolution and quantitative imaging performance.
4. High-Resolution CT
The PET system is integrated with a 160-slice CT detector featuring 0.25 mm isotropic spatial resolution, providing high-resolution anatomical information for PET/CT fusion and lesion localization.

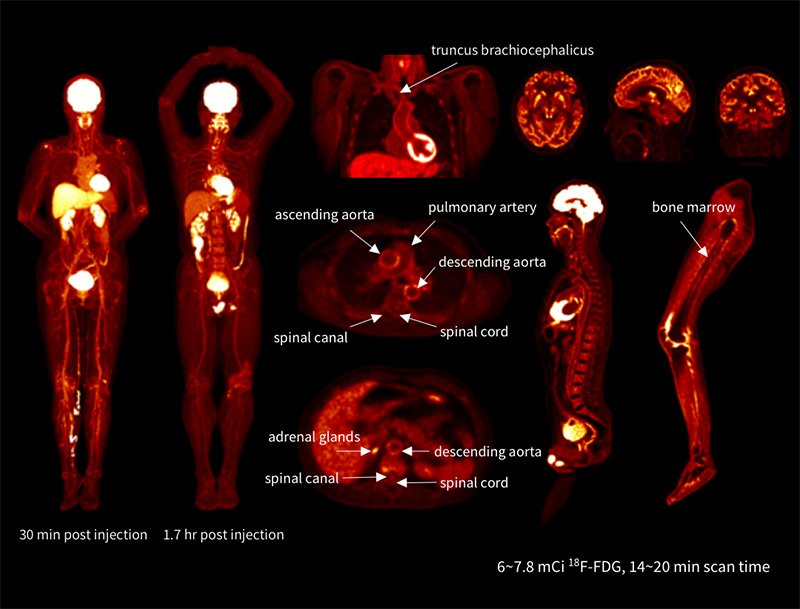

5. Total-Body Dynamic Imaging
The large FOV and high sensitivity allow the system to continuously track radiotracer distribution throughout the body. This makes it particularly valuable for dynamic PET, pharmacokinetic studies and molecular imaging research.
6. Ultra-Low-Dose & Fast Imaging
The high sensitivity enables imaging with substantially reduced tracer activity or very short acquisition times. United Imaging demonstrates total-body imaging in as little as 30 seconds at standard dose and ultra-low-dose imaging at sub-millicurie activity levels.
7. Automated Quality Control
The system supports automated daily quality control without radioactive sources, as well as periodic full QC using 18F-FDG or 68Ge sources. This helps simplify routine system maintenance and reduce operator radiation exposure.
8. Patient-Friendly Design
The 76 cm PET aperture, illuminated bore and short examination times are designed to improve patient comfort. The system also incorporates multiple in-bore intercoms and touchscreen controls for easier communication and operation.
