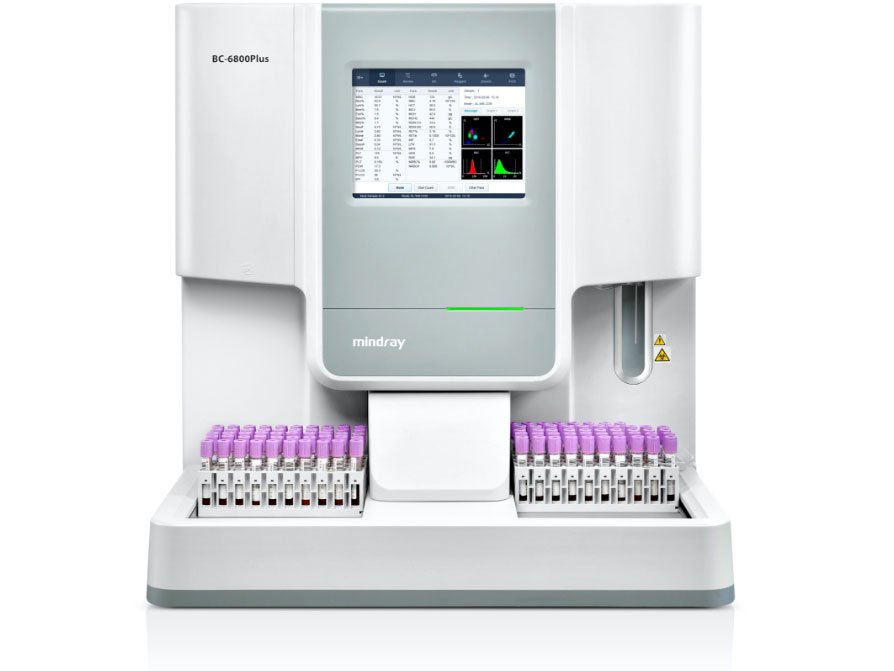

Mindray Blood Fluid Cell Analyzer BC-6800Plus
Introduction:
New testing channel; platelet aggregation; low platelet count; erythroid nine-point chart
参考价：
US$24,000–30,000 per unit
Overview
· 5-part differential hematology analyzer for routine CBC and advanced hematology testing.
· Up to 200 tests/hour for CBC+DIFF.
· Up to 100 sample tubes can be loaded at one time.
· SF Cube Technology combines laser scatter and fluorescence signals for 3D blood-cell analysis.
· Provides NRBC results with routine CBC without additional reagent or testing cost.
· Supports RET and PLT-O testing for extended hematology applications.
· Automatic rerun and reflex testing improves laboratory workflow efficiency.
· Supports whole-blood and body-fluid analysis.
Specifications
| Specification | Details |
|---|---|
| Product Name | Mindray BC-6800Plus |
| Product Type | Auto Hematology Analyzer |
| Differential | 5-Part Differential |
| Analysis Technology | SF Cube Technology |
| RBC / PLT Technology | Focusing Flow-DC |
| Hemoglobin Method | Cyanide-free reagent |
| Testing Modes | CBC, CBC+DIFF, CBC+DIFF+RET, CBC+RET, RET |
| CBC+DIFF Throughput | Up to 200 samples/hour |
| CBC+DIFF+RET Throughput | Up to 120 samples/hour |
| RET Throughput | Up to 120 samples/hour |
| Body Fluid Throughput | Up to 40 samples/hour |
| Loading Capacity | Up to 100 sample tubes |
| Whole Blood Sample Volume – Autoloader | 190 μL |
| Whole Blood Sample Volume – Open Vial | 130 μL |
| Prediluted Sample Volume | 40 μL |
| Body Fluid Sample Volume | 130 μL |
| Whole Blood Reportable Parameters | 37 |
| Whole Blood Research Parameters | 42 |
| Body Fluid Reportable Parameters | 7 |
| Body Fluid Research Parameters | 11 |
| Data Storage | Up to 10,000 results |
| WBC Linearity | 0–500 × 10⁹/L |
| RBC Linearity | 0–8.60 × 10¹²/L |
| HGB Linearity | 0–260 g/L |
| HCT Linearity | 0–75% |
| PLT Linearity | 0–5000 × 10⁹/L |
| RET# Linearity | 0–0.8 × 10¹²/L |
| Operating Temperature | 15–32°C |
| Operating Humidity | 30–85% |
| RBC / PLT Histograms | 2 |
| 3D Scattergrams | DIFF, WNB, RET |
| 2D Scattergrams | DIFF, WNB, RET, RET-EXT, PLT-O |
| Automatic Rerun | Supported |
| Reflex Testing | Supported |
| NRBC Detection | Integrated into routine CBC |
| NLR Parameter | Available in CBC+DIFF |
| LIS Connectivity | Supported |
Product Details
SF Cube Technology
The BC-6800Plus uses SF Cube Technology, combining forward laser scatter, side laser scatter and fluorescence signals for three-dimensional analysis of blood cells. This helps differentiate cell populations and identify abnormal-cell flags more effectively.
Comprehensive Hematology Testing
The analyzer supports routine CBC and 5-part differential testing, while also providing RET, NRBC and PLT-O-related measurements. NRBC and basophil results can be generated through the WNB channel during routine CBC testing without additional reagent consumption.
High-Throughput Workflow

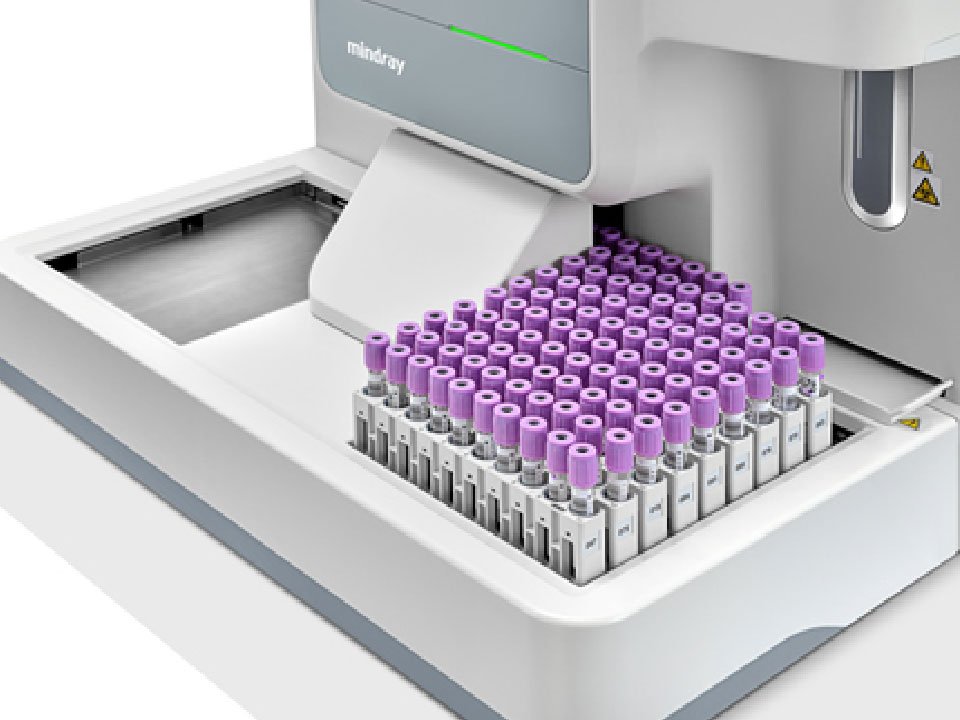

With a loading capacity of up to 100 sample tubes and throughput of up to 200 tests per hour, the BC-6800Plus is designed for medium- to high-volume laboratories. Automatic rerun and reflex functions allow samples meeting predefined criteria to be processed again without extensive manual intervention.
Low Sample Consumption

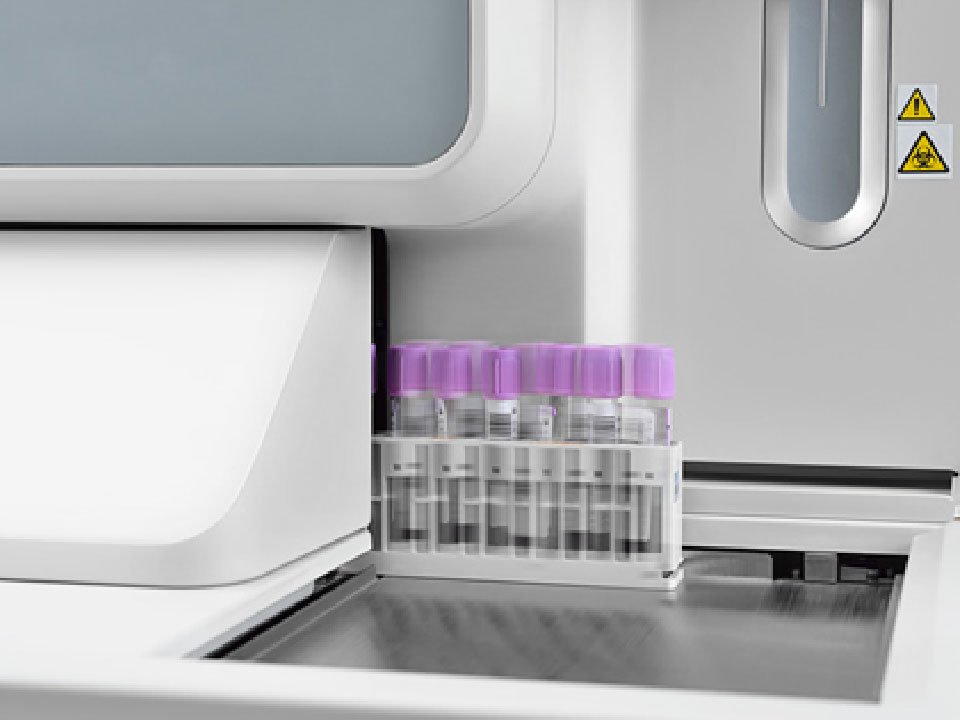

The analyzer supports different sampling modes, with a whole-blood sample volume of 190 μL through the autoloader and 130 μL using an open vial. Prediluted samples can be tested with a 40 μL sample volume
