SonoScape Bronchoscope EB-5H20 & EB-5T28
Introduction:
Total Control in the Airways
参考价：
US$25,000–40,000/unit
Overview
· High-definition video bronchoscopes designed for diagnostic and interventional bronchoscopy
· EB-5H20 features a slim 4.9 mm diameter for deeper access into the tracheobronchial tree
· EB-5T28 features a larger 2.8 mm instrument channel for improved suction and a wider range of accessories
· 120° field of view with a 2–100 mm depth of view
· SFI and VIST image-enhancement technologies for improved visualization of airway structures and mucosal morphology
· One-step connection and hot-plugging for a more efficient workflow
· Waterproof design supports direct cleaning and disinfection
Specifications
| Specification | EB-5H20 | EB-5T28 |
|---|---|---|
| Product Type | High-Definition Video Bronchoscope | High-Definition Video Bronchoscope |
| Application | Diagnostic & Interventional Bronchoscopy | Diagnostic & Interventional Bronchoscopy |
| Direction of View | Front Viewing | Front Viewing |
| Field of View | 120° | 120° |
| Depth of View | 2–100 mm | 2–100 mm |
| Distal End Diameter | 4.9 mm | 5.9 mm |
| Insertion Tube Diameter | 4.9 mm | 5.9 mm |
| Instrument Channel Diameter | 2.0 mm | 2.8 mm |
| Working Length | 600 mm | 600 mm |
| Angulation | Up 180° / Down 130° | Up 180° / Down 130° |
| Image Enhancement | SFI / VIST | SFI / VIST |
| Compatible Processor | HD-550 / HD-510 | HD-550 / HD-510 |
| Connection | One-Step Connection / Hot-Plugging | One-Step Connection / Hot-Plugging |
| Cleaning & Disinfection | Waterproof Design | Waterproof Design |
Product Details

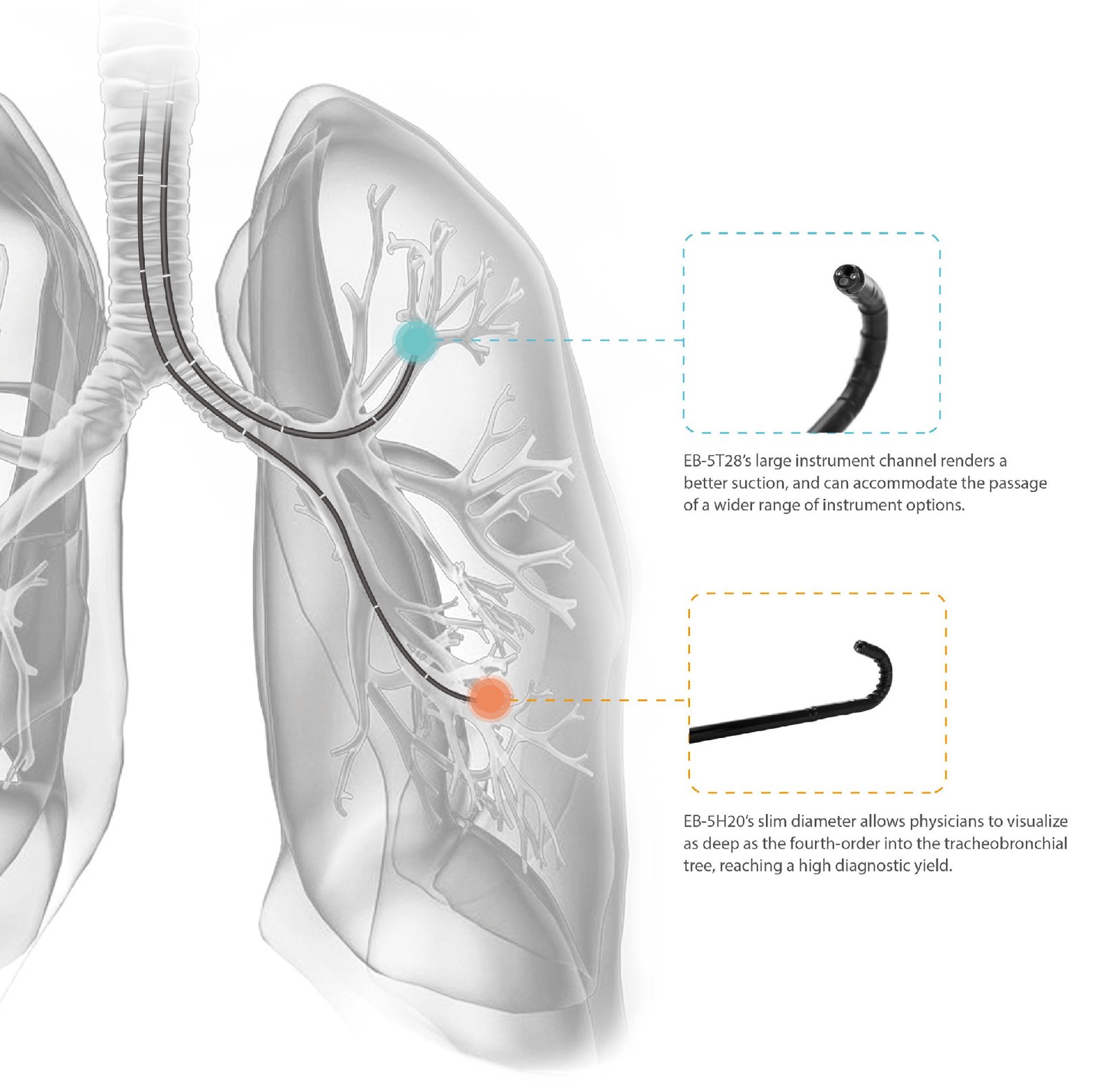

1. EB-5H20: Slim Bronchoscope for Deeper Access
The EB-5H20 has a 4.9 mm distal-end diameter and a 2.0 mm instrument channel. Its slim profile is designed to facilitate access deeper into the tracheobronchial tree, with SonoScape stating that it can visualize as deep as the fourth-order bronchi.
2. EB-5T28: Larger Instrument Channel
The EB-5T28 features a 5.9 mm distal-end diameter and a 2.8 mm instrument channel. The larger channel provides better suction and accommodates a wider range of bronchoscopic instruments, making it suitable for interventional procedures.
3. Enhanced Airway Visualization
Both bronchoscopes support SFI (Spectral Focused Imaging) and VIST (Versatile Intelligent Staining Technology). These technologies enhance the visualization of surface structures and mucosal morphology to assist in the detection and characterization of airway inflammation and lesions.

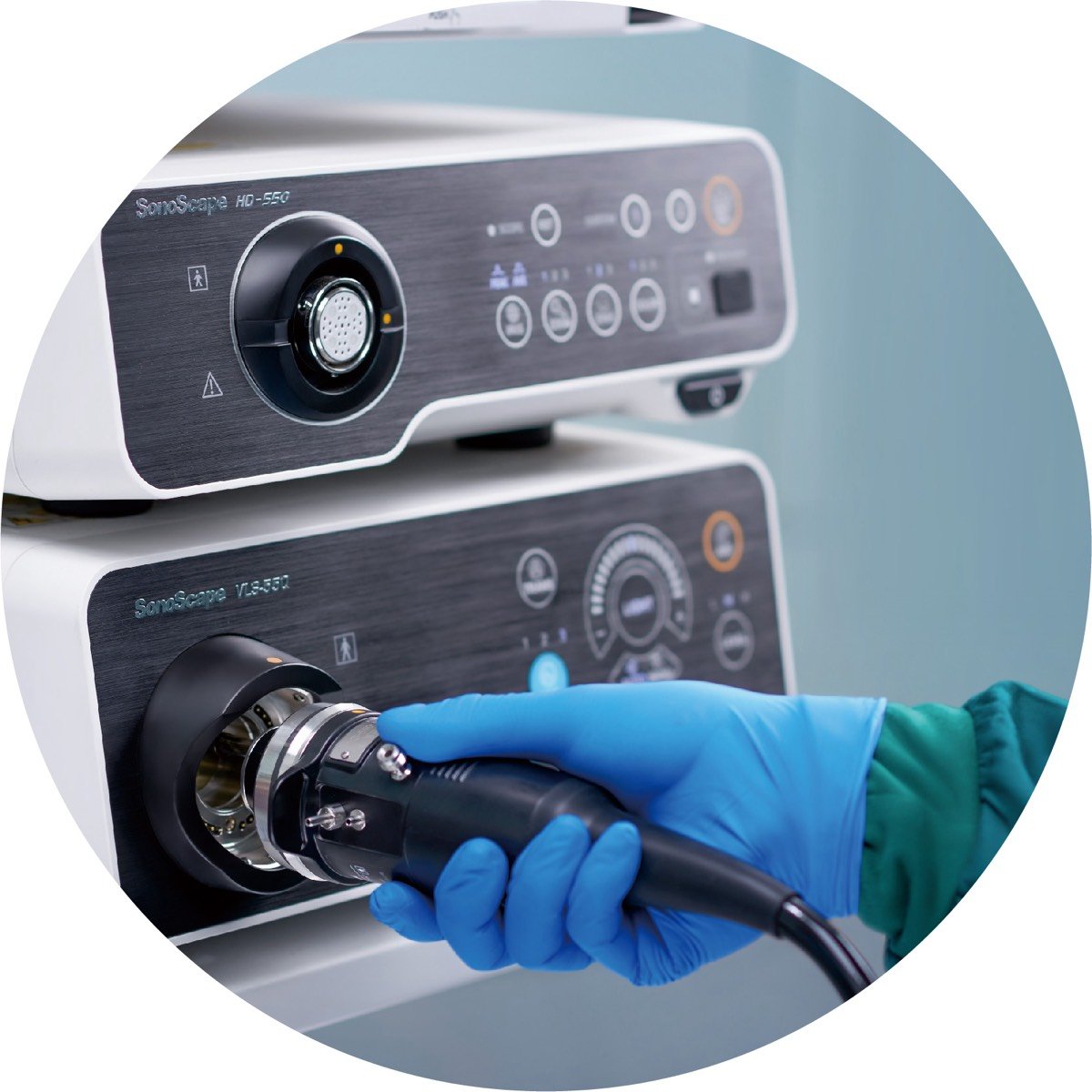

4. Efficient Workflow

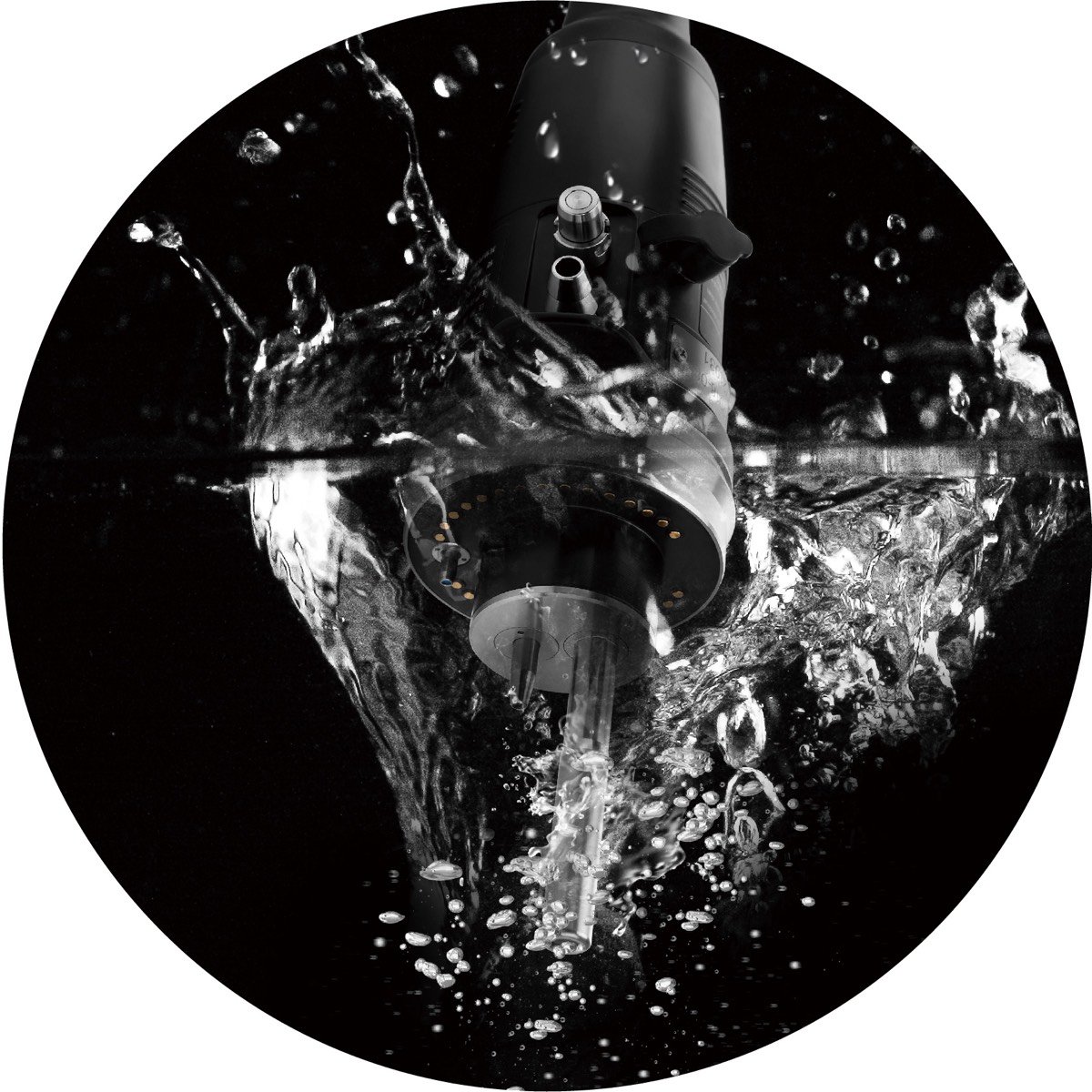

The EB-5H20 and EB-5T28 support one-step connection and hot-plugging, allowing either scope to be connected without interrupting the processor. Their waterproof design also supports direct cleaning and disinfection.
