Mindray Chemiluminescence Immunoassay Analyzer CL-8000i
Introduction:
Stable quality, easy to inspect, and reliable.
参考价：
US$30,000–80,000/unit
Overview
· Up to 500 tests/hour throughput for high-volume clinical laboratories.
· Uses a micron superparamagnetic particle platform with ALP-labeled reagents and AMPPD chemiluminescent substrate.
· VU-Mix combines vortex and ultrasound mixing to reduce fibrin interference.
· FS-Sampling provides intelligent sample-container and liquid-level recognition for more accurate aspiration.
· Supports continuous sample and reagent loading, with up to 60 sample racks and 36 reagent positions.
· Designed for integration with BS-2800M and laboratory automation systems (TLA).
Specifications
| Specification | CL-8000i |
|---|---|
| Product Type | Chemiluminescence Immunoassay Analyzer |
| System Type | Fully Automatic |
| Throughput | Up to 500 tests/hour |
| Measurement Principle | Micron superparamagnetic particles |
| Detection Method | Photon counting |
| Label | Alkaline phosphatase (ALP) |
| Substrate | AMPPD |
| Sample Positions | Up to 60 racks |
| Sample Volume | 10–200 μL |
| Sample Volume Increment | 1 μL |
| Automatic Dilution | 1:2–1:80 |
| Reagent Positions | 36 |
| Reagent Temperature | 2–8°C |
| Reagent Pack | 50 / 100 tests per pack |
| Reagent Volume | 10–200 μL |
| Substrate Bottle | 300 / 500 tests |
| Incubation Positions | 212 |
| Magnetic Separation | 4-phase magnetic separation |
| Reaction Temperature | 37 ± 0.1°C |
| Separation Temperature Accuracy | 37 ± 0.3°C |
| Mixing Technology | Vortex + Ultrasound (VU-Mix) |
| Cuvette | Disposable plastic cuvette |
| Sample Loading | Continuous loading/offloading |
| Reagent Loading | Continuous loading |
| Dimensions – Single Module | 1455 × 1150 × 1180 mm |
| Dimensions – Double Module | 2910 × 1150 × 1180 mm |
| Weight | Approx. 789 kg |
| Noise | <65 dBA |
| Automation Integration | BS-2800M / TLA compatible |
Product Details

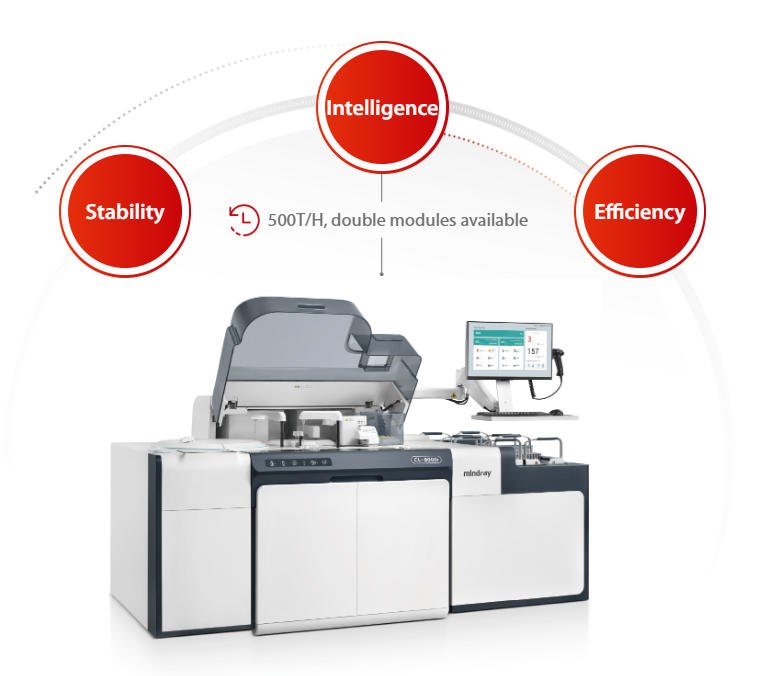

1. High-Throughput Chemiluminescence Testing
The CL-8000i is designed for high-volume immunoassay laboratories, providing throughput of up to 500 tests per hour. Its continuous sample and reagent loading functions help maintain workflow efficiency during extended operation.
2. VU-Mix Mixing Technology
The VU-Mix system combines vortex and ultrasound mixing. Ultrasound cavitation helps remove nonspecific substances and reduce fibrin-related interference, supporting more stable immunoassay results.
3. FS-Sampling Technology
FS-Sampling (Full Scene Sampling) automatically recognizes different sample containers and abnormal liquid levels, including bubbles and liquid films. The system provides intelligent warnings to help reduce aspiration errors.
4. Flexible Reagent Management
The analyzer provides 36 refrigerated reagent positions with continuous reagent loading and real-time magnetic-particle mixing. Reagents are maintained at 2–8°C, while the system supports reagent packs containing 50 or 100 tests.
5. Intelligent Workflow

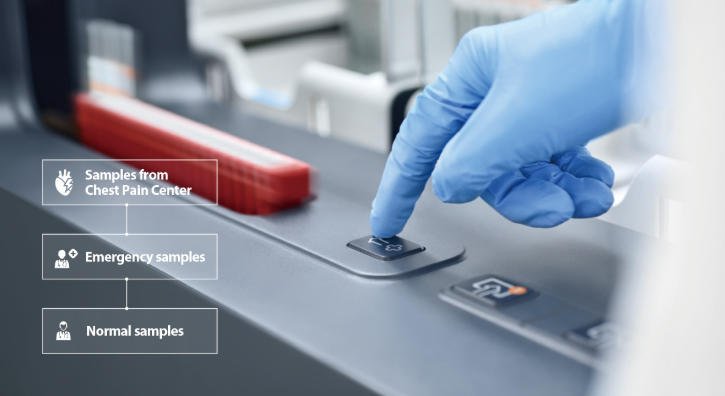

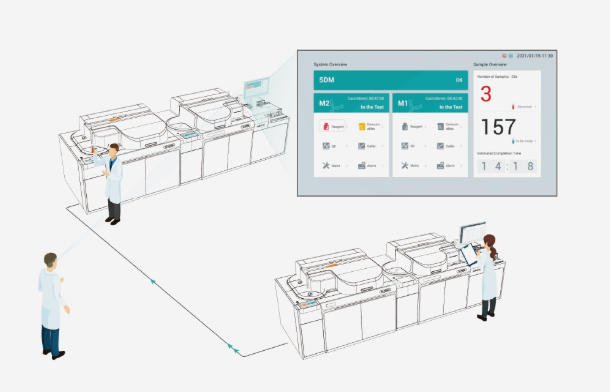

The CL-8000i supports automatic sample dilution, continuous cuvette loading, barcode-based reagent management and rapid handling of urgent samples. It can also be integrated with Mindray's BS-2800M and total laboratory automation systems.
