Mindray Defibrillator/Monitor BeneHeart D60
Introduction:
High-definition large screen, adaptive ambient light, full touchscreen design, waterproof.
参考价：
Overview
· 4-in-1 emergency solution: Manual defibrillation, AED, pacing, and patient monitoring in one device.
· 360J biphasic technology: Supports high-energy defibrillation with impedance compensation.
· Rapid resuscitation: Fast power-on and charging help reduce interruption during CPR.
· Advanced monitoring and diagnosis: Depending on configuration, supports ECG, SpO₂, NIBP, CO₂ and other parameters, with advanced models offering 12-lead ECG and POCUS.
· Built for emergency environments: Compact and durable designs support both in-hospital and pre-hospital applications.
· Connected emergency care: M-Connect™ enables patient data transmission and integration with hospital information systems.
Specifications
| Specification | BeneHeart D60 | BeneHeart D30 |
|---|---|---|
| Product Type | Defibrillator / Monitor | Defibrillator / Monitor |
| Defibrillation | Manual Defibrillation, AED, Synchronized Cardioversion | Manual Defibrillation, AED, Synchronized Cardioversion |
| Defibrillation Waveform | Biphasic Truncated Exponential | Biphasic Truncated Exponential |
| Maximum Energy | 360 J | 360 J |
| Pacing | Non-invasive Transcutaneous Pacing | Non-invasive Transcutaneous Pacing |
| ECG | 3/5-lead ECG, 12-lead ECG | 3/5-lead ECG |
| SpO₂ | Supported | Supported |
| NIBP | Supported | Supported |
| Respiration | Supported | Supported |
| CO₂ | Optional | Optional |
| POCUS | Supported | — |
| Display | High-resolution color display | 8-inch, 1024 × 768 color touchscreen |
| Connectivity | Wi-Fi / M-Connect™ | Wi-Fi / M-Connect™ |
| Water & Dust Protection | IP55 | IP55 |
| Drop Protection | Up to 1.5 m | Up to 0.75 m |
| Operating Temperature | -20°C to +55°C | -20°C to +55°C |
| Main Applications | Emergency Department, ICU, Ambulance, Pre-hospital Care | Emergency Department, ICU, Ambulance, Pre-hospital Care |
Product Details

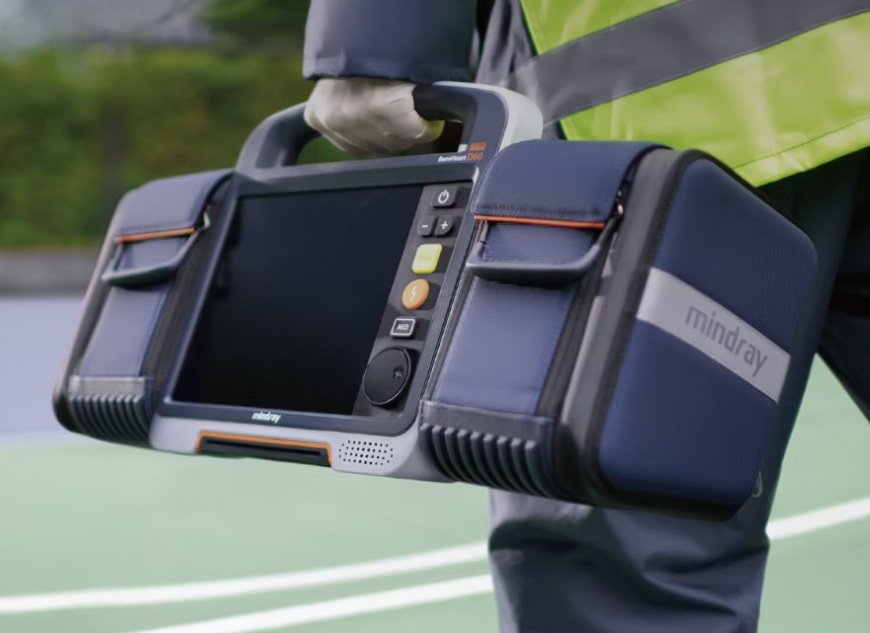

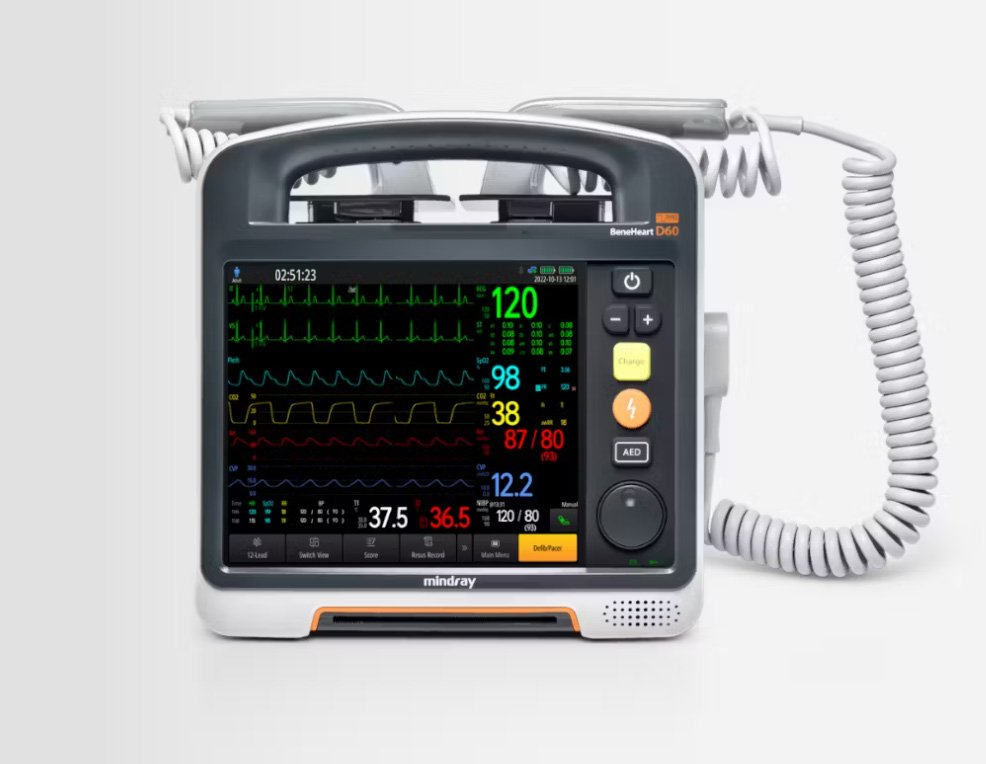

BeneHeart D60
The BeneHeart D60 is Mindray's high-end defibrillator/monitor for demanding emergency and pre-hospital environments. It combines defibrillation, AED, pacing and monitoring with advanced diagnostic functions.

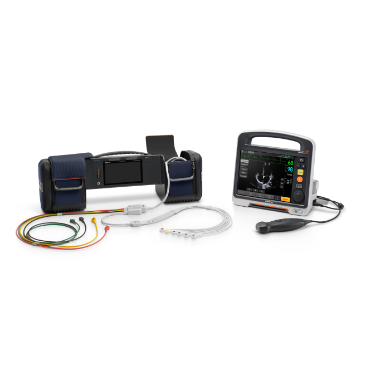

The D60 integrates 12-lead ECG analysis and POCUS, allowing clinicians to perform more comprehensive on-site assessment. Its M-Connect™ solution supports real-time transmission of patient information from ambulances to hospitals, helping medical teams prepare for treatment before patient arrival.
The device is designed for harsh environments, with operation from -20°C to +55°C, 1.5 m drop protection without a carry case, and 3 m protection with the carry case.
BeneHeart D30
The BeneHeart D30 is a compact defibrillator/monitor designed for efficient emergency response. It combines manual defibrillation, AED, pacing and monitoring in an integrated platform.
Its 8-inch high-definition touchscreen, physical controls and intuitive interface provide flexible operation during resuscitation. The device also features IP55 water/dust protection, six-side 0.75 m drop protection and a bend-resistant defibrillation cable designed for more than 400,000 bending tests.
The D30 also supports M-Connect™ and M-IoT solutions for patient-data management, remote access and equipment management.
BeneHeart D6 / D3
The BeneHeart D6 and D3 are professional biphasic defibrillator/monitors featuring a 4-in-1 design covering monitoring, manual defibrillation, AED and pacing. Both support up to 360 J defibrillation and are designed for hospitals and clinics.
The D6 supports rapid operation, with power-on in approximately 2 seconds, charging to 200 J in approximately 3 seconds and ECG recovery in less than 2.5 seconds.
The D3 offers similar emergency-resuscitation capabilities in a lightweight form factor, with wireless connectivity and automatic self-testing functions.
