Mindray Automatic Dry Chemistry Urine Analyzer UA-5600
Introduction:
Compatible with 2 kinds of urine strips, more comprehensive;High efficient detection performance, more reliable
参考价：
US$8,000–12,000 / unit
Overview
· Fully automated dry chemistry urine analyzer
· Up to 240 urine samples/hour
· Compatible with 11- and 14-parameter urine reagent strips
· Automatic analysis of urine color, appearance and specific gravity
· Supports calculated Protein/Creatinine (P/C) and Albumin/Creatinine (A/C) ratios
· 100-sample loading capacity with continuous loading
· 200-strip reagent capacity
· Built-in 360° barcode scanner
· Bidirectional LIS connectivity
· STAT testing supported
· Mindray LabXpert software for instrument and result management
Specifications
| Specification | UA-5600 |
|---|---|
| Product Type | Automatic Dry Chemistry Urine Analyzer |
| Analysis Principle | Reflectance Colorimetry / Refractometry / Nephelometry |
| Throughput | Up to 240 samples/hour |
| Urine Strips | 11-parameter and 14-parameter strips |
| Strip Loading Capacity | 200 strips |
| Sample Loading Capacity | 100 samples |
| Sample Loading | 10 racks × 10 samples |
| STAT Function | Yes |
| STAT Loading Position | Independent STAT position |
| Reportable Parameters | Glucose, Protein, Blood, Bilirubin, pH, Ketones, Ascorbic Acid, Urobilinogen, Nitrite, Leukocyte Esterase, Specific Gravity, Color, Appearance; additional Creatinine, Calcium and Albumin with 14-parameter strips |
| Calculated Parameters | Protein/Creatinine (P/C), Albumin/Creatinine (A/C) |
| Barcode | Integrated 360° barcode scanner |
| LIS | Bidirectional LIS connection |
| Software | Mindray LabXpert |
| Dimensions | 610 × 540 × 780 mm |
| Weight | 65 kg |
Product Details
1. Automated Urine Chemistry Analysis
The UA-5600 is designed for automated physical and chemical urine analysis. It combines reagent-strip reflectance colorimetry with refractometry for specific gravity and nephelometry for appearance assessment. This allows routine urine chemistry and physical characteristics to be analyzed within one workflow.

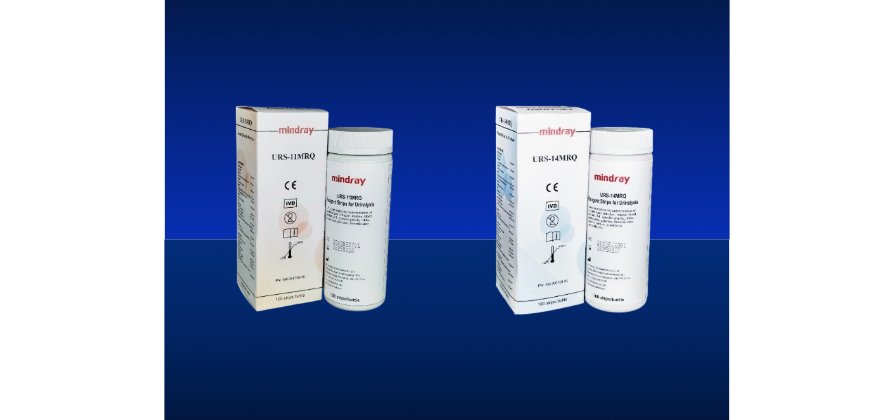

2. Multiple Test Strip Options
The analyzer supports both 11-parameter and 14-parameter urine strips. The 14-parameter option adds creatinine, calcium and albumin, providing a broader testing profile for clinical laboratories.

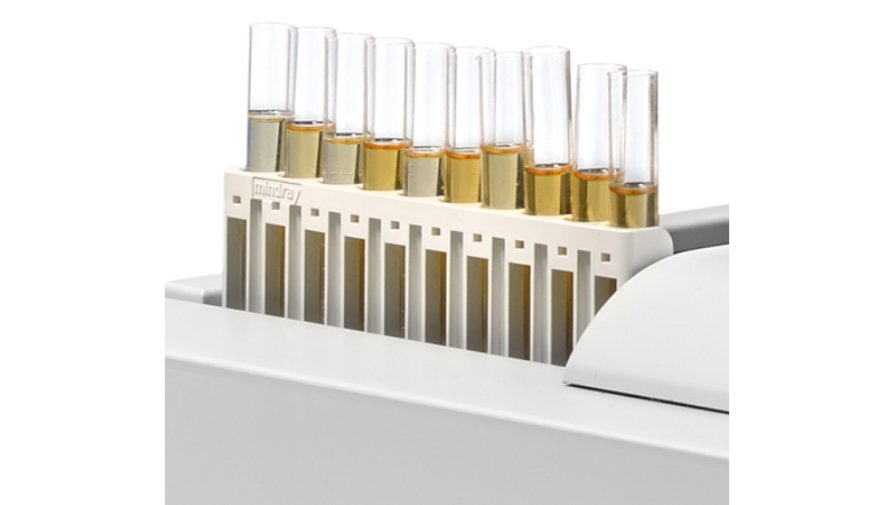

3. High-Efficiency Sampling
Mindray uses dot-matrix sampling technology to help reduce cross-interference between test items and improve analytical precision. The analyzer can process up to 240 samples per hour and accommodate up to 100 samples and 200 test strips.
4. Calculated Urine Ratios
In addition to direct test results, the UA-5600 provides calculated Protein/Creatinine (P/C) and Albumin/Creatinine (A/C) ratios. The A/C ratio can provide additional information related to urinary albumin excretion.
5. Intelligent Workflow
An integrated 360° barcode scanner, independent STAT position and bidirectional LIS connection support efficient sample identification and laboratory workflow. Mindray's LabXpert software can manage the instrument and display urine chemistry, sediment and RBC morphology results on a unified interface when used within the corresponding urinalysis solution.
