Mindray Chemistry & Immunoassay Integrated System SAL 6000
Introduction:
Simultaneously loading 300 samples,Comprehensive reagent packages
参考价：
US$150,000–300,000
Overview
· Integrated chemistry and immunoassay system for high-volume clinical laboratories

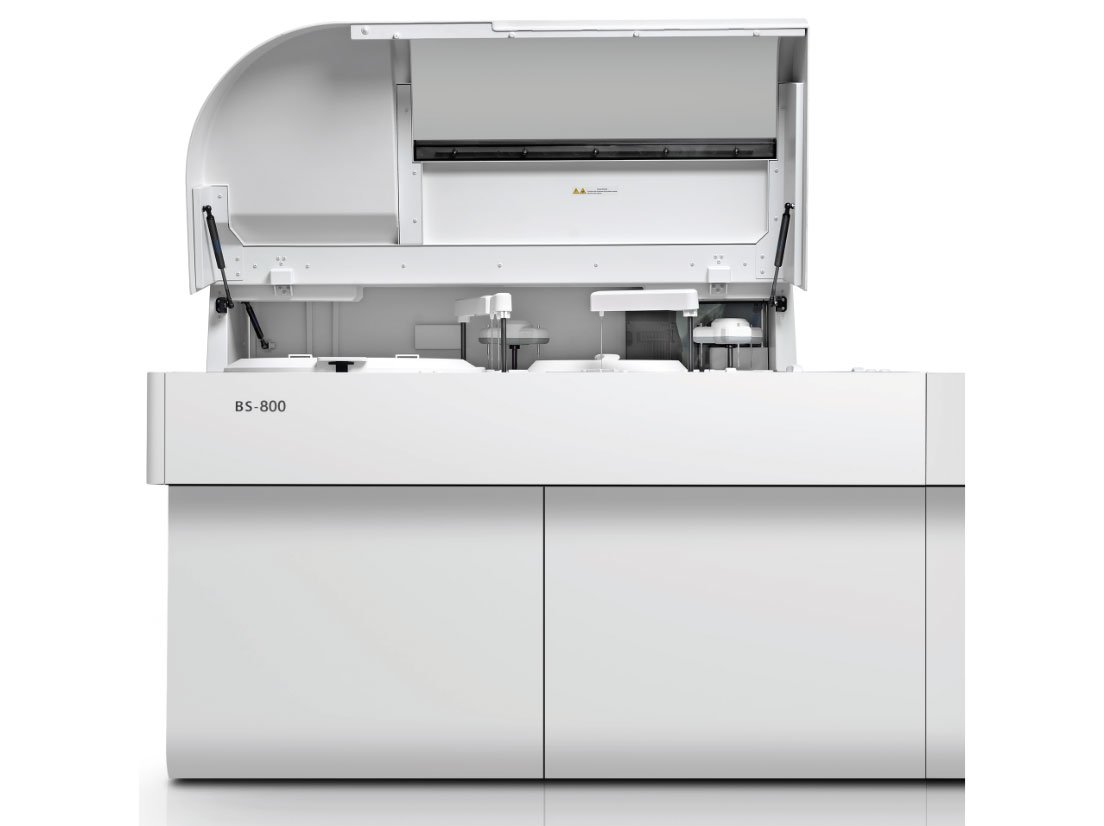

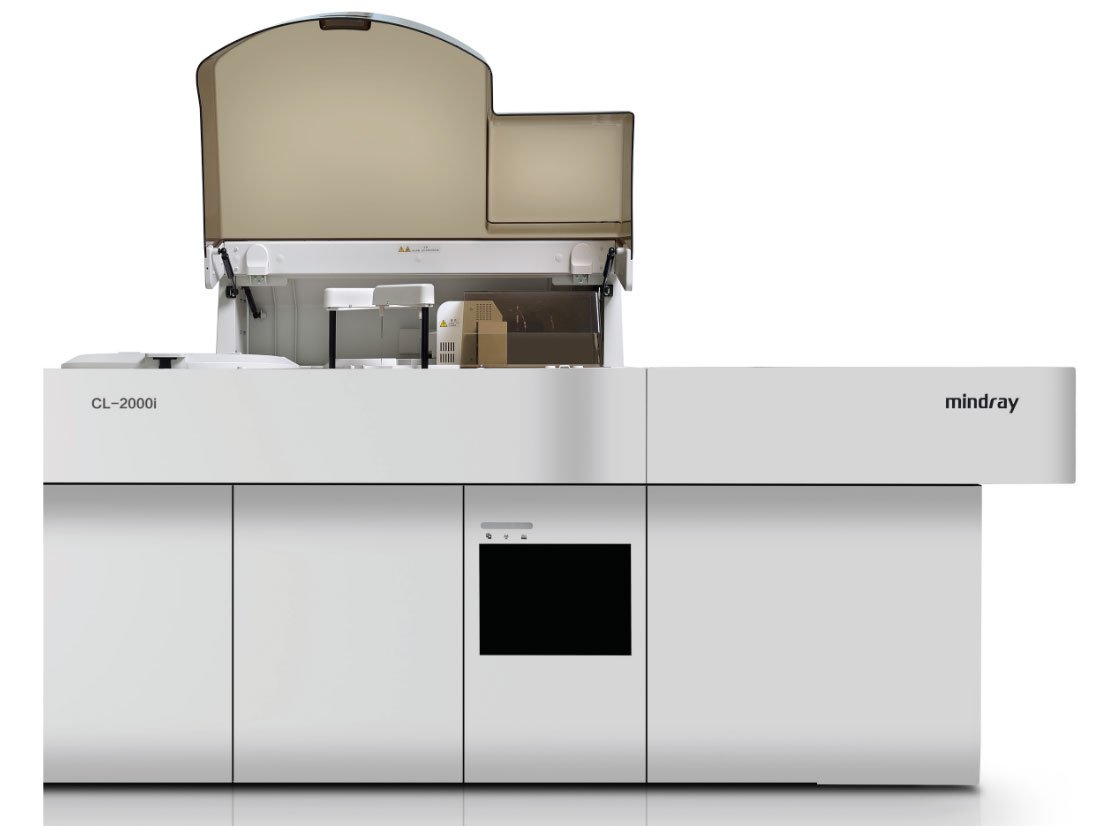

· Combines CL-2000i Chemiluminescence Immunoassay System and BS-800 Chemistry System
· Supports up to 1,200 tests/hour for chemistry with ISE
· Immunoassay throughput of up to 240 tests/hour

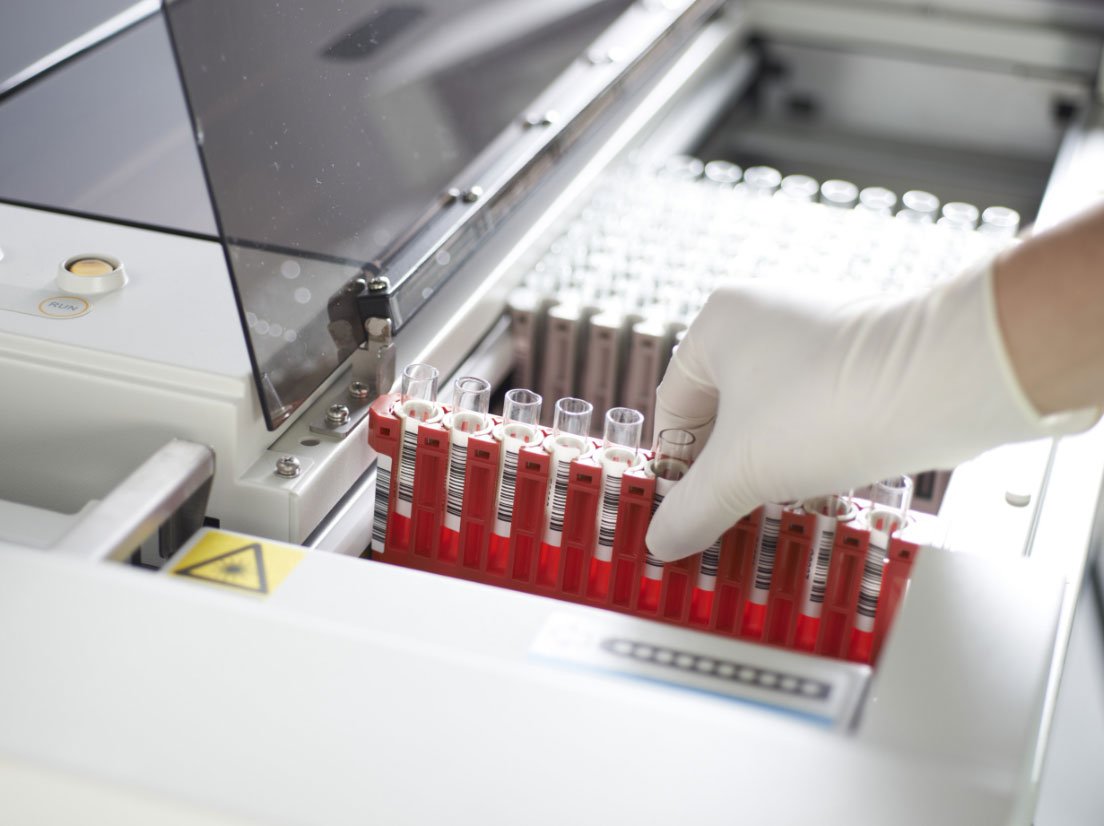

· Up to 300 samples with continuous rack loading
· 120 reagent positions for the BS-800 chemistry module
· 36 onboard reagent positions for the CL-2000i immunoassay module
· Supports STAT, auto-rerun and reflex testing
· Integrated sample distribution reduces manual intervention
· Designed for hospitals and high-volume clinical laboratories
Specifications
| Specification | Details |
|---|---|
| Product Name | Mindray SAL 6000 |
| Product Type | Chemistry & Immunoassay Integrated System |
| Chemistry Module | BS-800 |
| Immunoassay Module | CL-2000i |
| Sample Processing Module | SPL 1000 |
| Chemistry Throughput | 800 photometric tests/hour |
| Chemistry Throughput with ISE | Up to 1,200 tests/hour |
| Immunoassay Throughput | Up to 240 tests/hour |
| Chemistry Reagent Positions | 120 |
| Chemistry Reagent Positions with Carousel | Up to 140 |
| Immunoassay Reagent Positions | 36 |
| Sample Capacity | Up to 300 samples |
| Immunoassay Parameters | Up to 70 parameters |
| Total Assays | More than 100 chemistry and immunoassay parameters |
| Sample Loading | Continuous rack loading |
| STAT Testing | Supported |
| Auto-Rerun | Supported |
| Reflex Testing | Supported |
| HbA1c | Automatic onboard hemolysis |
| LIS Connectivity | Supported |
| Dimensions | 3935 × 1016 × 1145 mm |
| Weight | Approx. 1,078 kg |
| Operating Temperature | 15°C–30°C |
| Operating Humidity | 35%–85%, non-condensing |
| Operating Altitude | -400 m to 4,000 m |
| Power Supply | 110/115 V or 220–240 V, depending on configuration |
Product Details
The Mindray SAL 6000 is an integrated clinical chemistry and chemiluminescence immunoassay platform designed for high-volume laboratories. It combines the BS-800 chemistry system, CL-2000i immunoassay system and SPL 1000 sample processing system into a unified workflow.
The integrated configuration allows chemistry and immunoassay tests to be performed from the same sample tube, reducing manual aliquoting and simplifying laboratory workflow. The SPL 1000 provides automated rack distribution and supports rapid handling of STAT, auto-rerun and reflex tests.

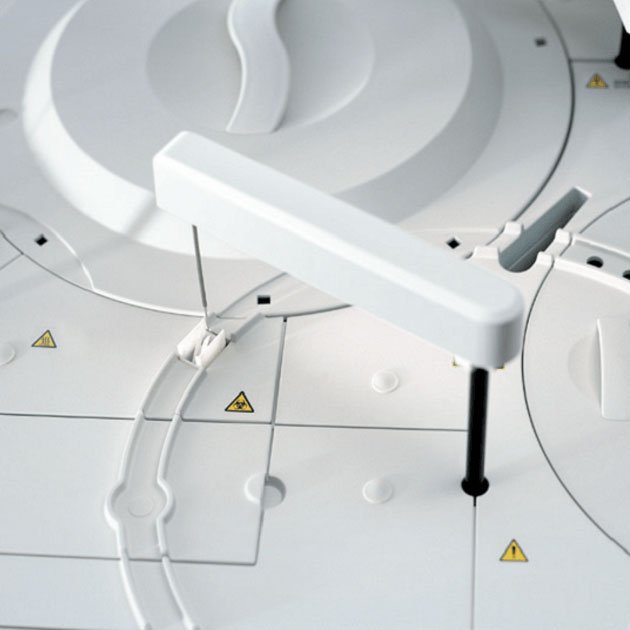

The chemistry module uses a dual-lens and dual-diaphragm optical system, while the immunoassay module uses optimized PMT technology. High-precision aspiration incorporates liquid-level, clot and bubble detection, with automatic collision recovery to support stable operation.
The system also incorporates enhanced probe washing, cuvette and mixer cleaning, reagent temperature control and complete traceability. These functions are intended to reduce carry-over and improve consistency in high-throughput laboratory testing.
