Mindray CX-9000 Fully Automated Coagulation Analyzer
Introduction:
2-h incubation inside the analyzer followed by automatictesting process,Wavelength switching + internal dilution, automatic HIL solution
参考价：
US$30,000–60,000/unit
Overview
· 450 tests/hour constant throughput, with one result delivered approximately every 8 seconds.
· Fixed-frequency and constant-speed optical measurement platform for stable coagulation testing.
· Online reagent replacement without interrupting testing.
· Integrated liquid reagent kits with RFID tracking and traceability.
· Reagent stability of more than 2 weeks onboard, with 2–8°C refrigerated storage after shutdown.
· Automated APTT mixing test, HIL pre-check and intelligent result management.
Specifications
| Specification | CX-9000 Series |
|---|---|
| Product Type | Fully Automatic Coagulation Analyzer |
| Measurement Principle | Optical measurement |
| Throughput | 450 tests/hour |
| Result Output | 1 result every 8 seconds |
| Reagent Package | 100 / 200 tests per kit |
| Reagent Management | RFID identification and traceability |
| Onboard Reagent Stability | >2 weeks |
| Reagent Storage | 2–8°C after shutdown |
| APTT Mixing Test | Automatic 7-step process |
| HIL Detection | 10-grade index, independent pre-check channels |
| HIL Processing | Wavelength switching + internal dilution |
| Reagent Replacement | Online replacement without interruption |
| Reagent Waste | Automatic disposal of waste reagent kits |
| QC Management | External Quality Control (EQC) system* |
| System Architecture | Modular configuration |
| Applicable Testing | Coagulation, anticoagulation, fibrinolysis and antifibrinolysis assessment |
Product Details
1. High and Constant Throughput
The CX-9000 maintains a constant throughput of 450 tests/hour, regardless of test-panel combination, with continuous output of approximately one result every 8 seconds. This design helps laboratories improve sample turnaround time.
2. Intelligent Reagent Management

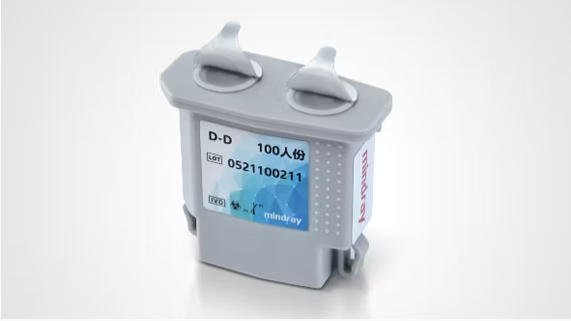

The analyzer uses integrated liquid reagent kits in 100- and 200-test configurations. RFID technology enables reagent identification, information tracking and traceability. Reagents can remain onboard for more than two weeks, while the reagent tray can be separately refrigerated at 2–8°C after shutdown.
3. Continuous Reagent Replacement
An independent sensing and adaptive loading tray allows operators to add new reagent kits without interrupting analyzer operation. Waste reagent kits are automatically discarded, reducing manual intervention.
4. Automated APTT Mixing Test
The CX-9000 provides a standardized 7-step APTT mixing-test workflow, including two-hour plasma incubation inside the analyzer, automatic calculation of correction indexes and automatic interpretation of correction results.
5. HIL Sample Management
The HIL solution uses independent pre-check channels and 10-grade HIL index results. Preset thresholds, wavelength switching and internal dilution enable automated handling of hemolysis, icterus and lipemia-related sample interference.
6. Clinical and Laboratory Applications
The CX-9000 is designed for clinical analysis of blood coagulation and anticoagulation as well as fibrinolysis and antifibrinolysis functions. Independent clinical evaluation has reported good stability, repeatability, linearity and low carryover for routine coagulation testing.
