SonoScape Gastroenterology 500 Series
Introduction:
Equipped with the CMOS image sensor
参考价：
US$10,000–13,000 / unit
Overview
· HD CMOS imaging for sharp images and enhanced edge visibility.
· 140° field of view for a wide observation area.
· Strong water-jet function helps clear mucus and chyme during procedures.
· Large instrument channels support a variety of diagnostic and therapeutic procedures.
· Short bending radius and wide angulation improve maneuverability.
· Gradual insertion-tube stiffness supports smoother and more comfortable insertion.
· Lightweight ergonomic handle with customizable controls.
· Suitable for routine examinations and complex gastrointestinal interventions.
Specifications
| Specification | Details |
|---|---|
| Product Series | SonoScape 500 Series |
| Product Type | Video Gastroenterology Endoscopes |
| Imaging Sensor | CMOS |
| Field of View | 140° |
| Depth of Field | 3–100 mm |
| Water Jet | Yes |
| Gastroscope Models | EG-500, EG-500L |
| Colonoscope Models | EC-500, EC-500T, EC-500L, EC-500L/T |
| EG-500 Distal End Diameter | 9.3 mm |
| EG-500L Distal End Diameter | 9.8 mm |
| EG-500 Instrument Channel | 2.8 mm |
| EG-500L Instrument Channel | 3.2 mm |
| EG-500 / EG-500L Working Length | 1,050 mm |
| EG-500 / EG-500L Angulation | Up 210°, Down 90°, Left/Right 100° |
| EC-500 Instrument Channel | 3.8 mm |
| EC-500L Instrument Channel | 4.2 mm |
| EC-500 Series Working Length | 1,350–1,700 mm |
| Colonoscope Angulation | Up/Down 180°, Left/Right 160° |
| Maximum Insertion Tube Diameter | Approx. 10.5 mm for EG-500 |
| Illumination | ≥18,000 lx for EG-500 |
| Aspiration Flow | ≥400 mL/min for EG-500 |
| Water Feeding | ≥40 mL/min |
| Air Feeding | ≥800 mL/min |
Product Details
High-Definition CMOS Imaging
The 500 Series uses a CMOS image sensor to produce sharp images with improved edge visibility and enhanced anatomical details. This supports both routine gastrointestinal examinations and more demanding procedures.
Wide Field of View
With a 140° field of view and a 3–100 mm depth of field, the endoscopes provide broad visualization of the gastrointestinal tract. The wide viewing angle can help clinicians observe a larger area during examination.

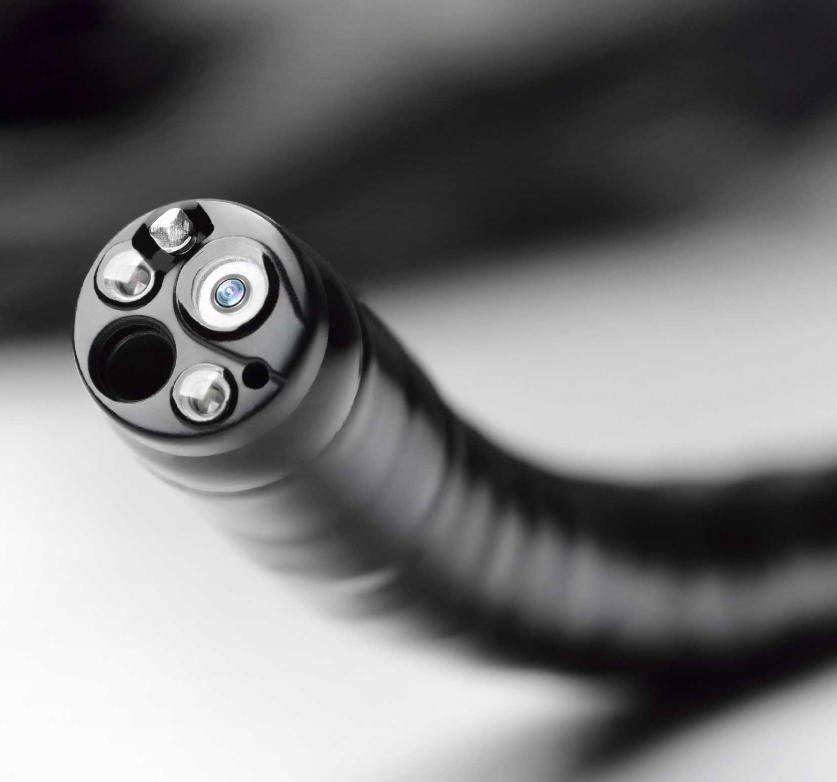

Water-Jet and Large Instrument Channel
The integrated water-jet function provides strong flushing to remove mucus and chyme from the viewing area. The relatively large instrument channels accommodate a range of accessories for biopsy and therapeutic procedures.

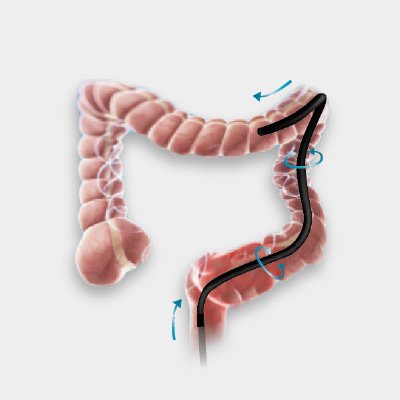

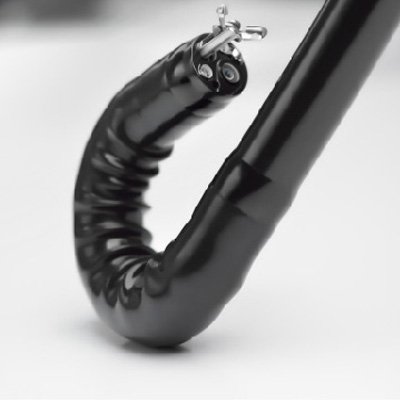

Flexible and Ergonomic Design

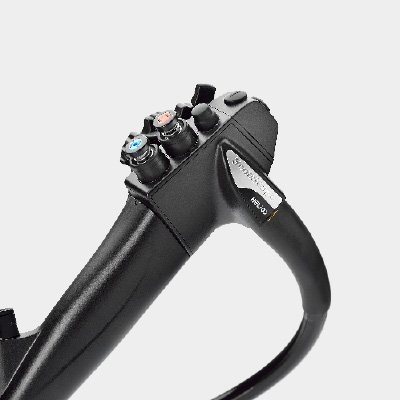

The short bending radius and wide angulation provide good maneuverability. The gradual stiffness of the insertion tube is designed to facilitate smoother insertion, while the lightweight handle helps reduce operator fatigue during longer procedures.
