Mindray BeneVision N22/N19/N17 ICU
Introduction:
Assist in critical rehabilitation, simplify critical care, perform critical CT scans
参考价：
US$15,000–40,000 / unit
Overview
· Advanced bedside patient monitoring platform designed for ICU and critical care environments.
· Multiple models including VMAX, V700, V500 and V200, covering different clinical and display requirements.
· Ultrasound-integrated monitoring with support for Mindray TE Air and HemoSight™ for enhanced hemodynamic assessment.
· MRV Pod™ wireless cable-lite monitoring transmits full-parameter vital signs wirelessly to the monitor.
· Comprehensive multi-parameter monitoring including ECG, SpO₂, NIBP, IBP, temperature, respiration, CO₂ and advanced hemodynamic parameters.
· Advanced clinical decision-support tools including HemoSight™, SepsisSight™, NeuroSight™ and BoA Dashboard™.
· iAlarm™ intelligent alarm management helps prioritize clinically significant alarms.
· VMAX features a large 31-inch 4K UHD capacitive touchscreen and 360° visible alarm indicators.
· Compatible with BeneVision N1 for continuous monitoring during patient transport.
Specifications
| Specification | Details |
|---|---|
| Product Type | Advanced Multi-Parameter Patient Monitor |
| Series | BeneVision V Series |
| Manufacturer | Mindray |
| Models | VMAX, V700, V500, V200 |
| Primary Applications | ICU, Critical Care, OR, Cardiac Care |
| Patient Types | Adult / Pediatric / Neonate |
| Display – VMAX | 31-inch 4K UHD capacitive touchscreen |
| Display – V700 | 22-inch, 1920 × 1080 FHD |
| Display – V500 | 18-inch, 1920 × 1080 FHD |
| Display – V200 | 15-inch, 1920 × 1080 FHD |
| Touchscreen | Capacitive multi-point touch |
| ECG | 3/5/6/12-lead |
| SpO₂ | Mindray / Nellcor / Masimo |
| NIBP | Yes |
| IBP | Up to 2 channels |
| Temperature | Up to 2 channels |
| Respiration | Yes |
| CO₂ | Optional / configuration dependent |
| Advanced Hemodynamics | C.O., PiCCO, FloTrac, ICG and related parameters depending on configuration |
| Neurological Monitoring | EEG/aEEG, BIS/BISx4, NMT, rSO₂ depending on configuration |
| Respiratory Parameters | CO₂, AG, RM, VCO₂, RQ, EE and related parameters depending on configuration |
| Clinical Applications | HemoSight™, SepsisSight™, NeuroSight™, BoA Dashboard™ |
| Alarm Management | iAlarm™ |
| Wireless Monitoring | MRV Pod™ |
| Connectivity | Wi-Fi, Bluetooth and network connectivity depending on configuration |
| V700 Weight | Approx. 9.0 kg including battery |
| V500 Weight | Approx. 7.5 kg including battery |
| V200 Weight | Approx. 5.0 kg excluding battery |
| MRV Pod Weight | ≤0.295 kg |
Product Details
1. Advanced Bedside Monitoring Platform
The BeneVision V Series is designed to transform the conventional bedside monitor into an integrated clinical information and decision-support platform. It combines physiological monitoring, clinical applications and data from connected medical devices on a single interface.

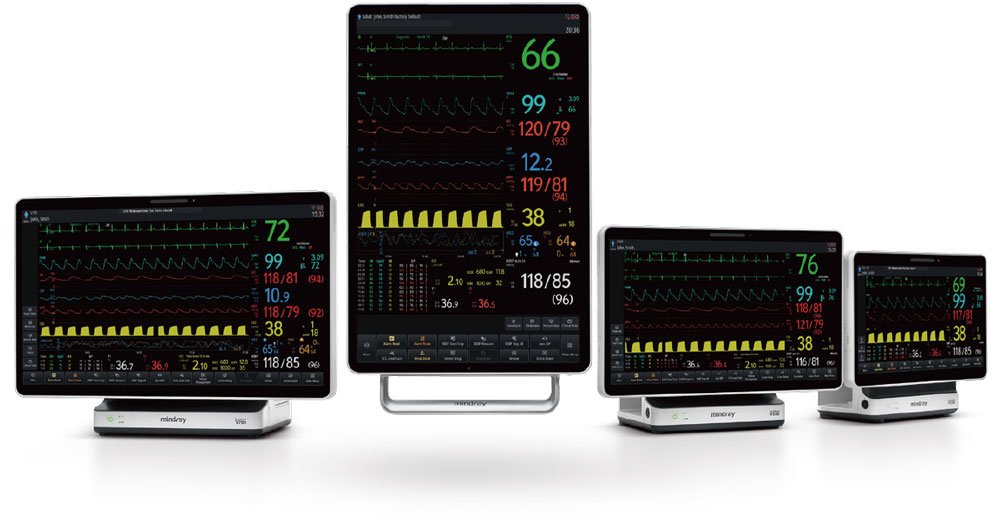

The series includes VMAX, V700, V500 and V200, allowing hospitals to select different screen sizes and configurations according to clinical requirements.

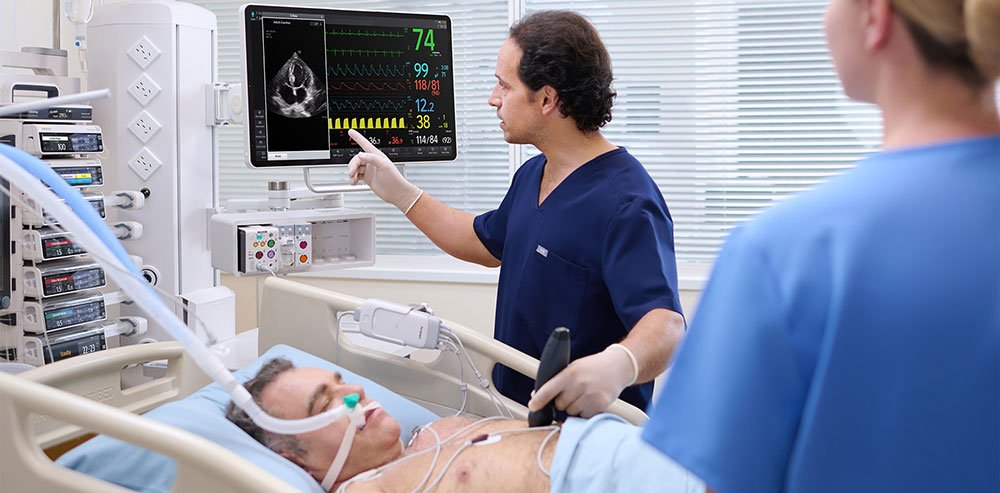

2. Ultrasound-Integrated Hemodynamic Assessment
The V Series can integrate with Mindray's TE Air handheld ultrasound system. Ultrasound images can be displayed on the patient monitor for real-time assessment and historical review.
The HemoSight™ application combines ultrasound-derived information with vital signs and hemodynamic data, helping clinicians obtain a more comprehensive view of the patient's cardiovascular status.

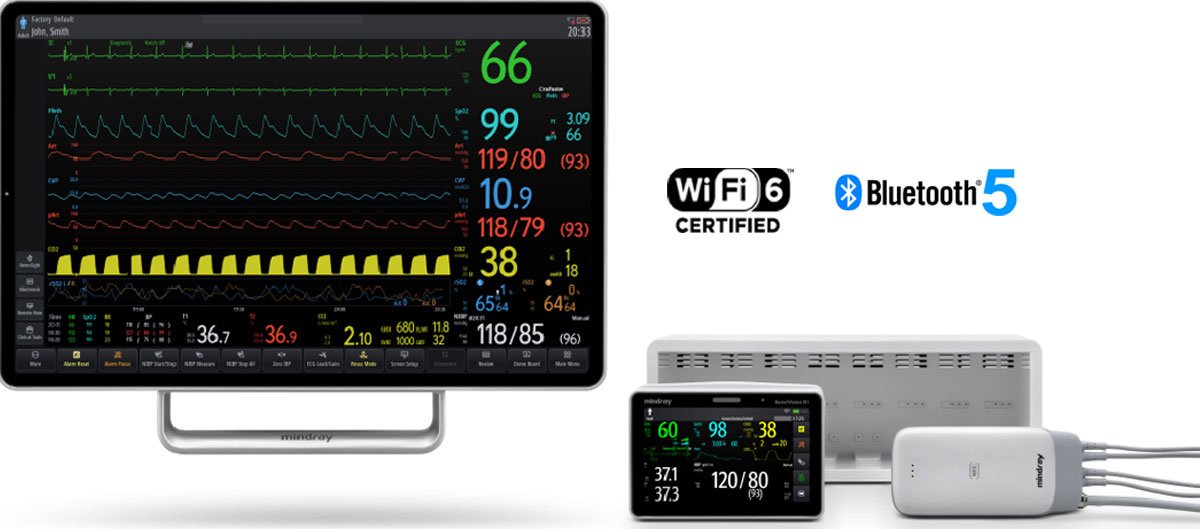

3. MRV Pod™ Cable-Lite Monitoring
The MRV Pod™ provides full-parameter wireless vital-sign monitoring. It supports ECG, respiration, SpO₂, NIBP, two-channel IBP and two-channel temperature monitoring.
By transmitting data wirelessly, the MRV Pod reduces bedside cable clutter and gives patients greater freedom of movement. It can also work with the BeneVision N1 transport monitor to maintain monitoring continuity during patient transport.
4. Comprehensive Monitoring Parameters
The V Series supports a broad range of monitoring parameters, including:
ECG, SpO₂, NIBP, IBP, temperature, respiration, CO₂, cardiac output and advanced hemodynamic parameters, with additional neurological and respiratory parameters available according to configuration.
This makes the platform suitable for high-acuity environments where multiple physiological systems need to be monitored simultaneously.
5. Clinical Decision-Support Tools
The V Series incorporates several clinical assistive applications, including:
· HemoSight™ — hemodynamic assessment
· SepsisSight™ — sepsis-related clinical support
· NeuroSight™ — neurological monitoring support
· BoA Dashboard™ — integrated clinical data visualization
· iAlarm™ — intelligent alarm management
These tools combine physiological data and clinical information to help clinicians identify abnormal conditions and support timely intervention.

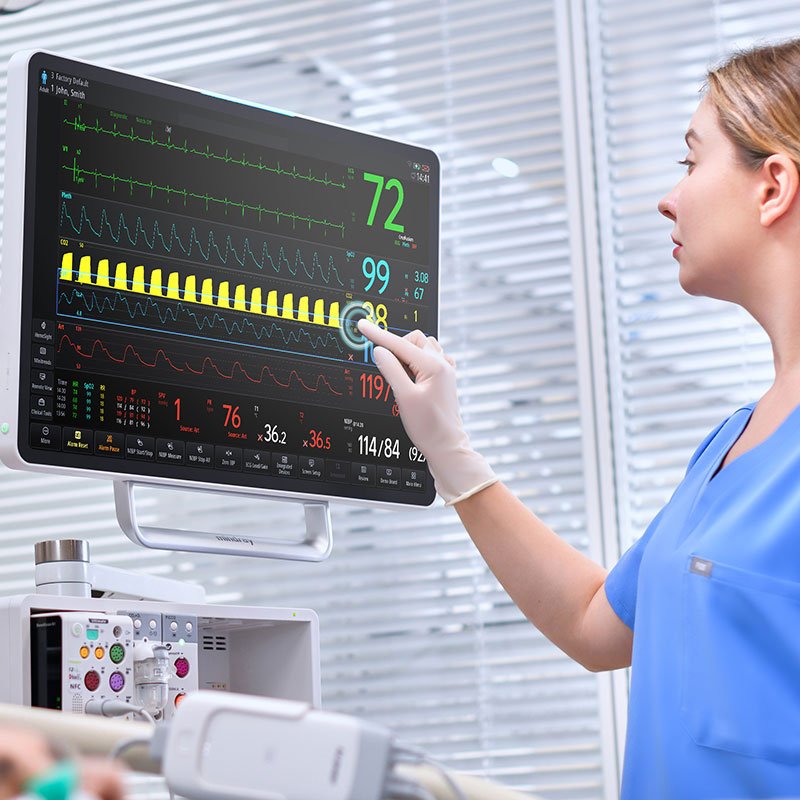

6. VMAX 4K UHD Display
The flagship VMAX features a 31-inch 4K UHD capacitive touchscreen in an ultra-slim design. It provides high-resolution visualization of waveforms, vital signs and integrated clinical information.
Its 360-degree visible alarm lights allow critical alerts to be seen from different positions around the bedside. The touchscreen supports gesture-based operation, including drag-and-drop customization and pinch-to-zoom waveform adjustment.
