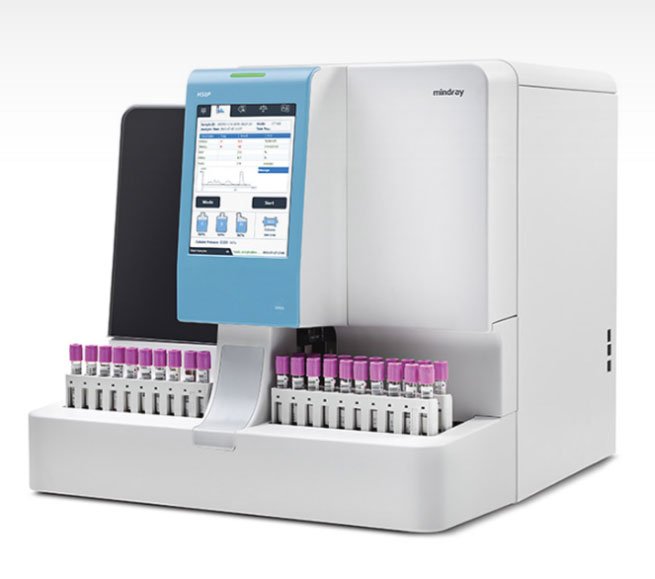

Mindray Automated HPLC Analyzer H50P
Introduction:
H50P, featuring the gold-standard High Performance Liquid Chromatography (HPLC) method and a high throughput of 50 samples per hour, excels in detecting glycosylated hemoglobin with superior precision.
参考价：
US$10,000–20,000/unit
Overview
· Gold-standard HPLC method for high-precision HbA1c testing
· 4 reportable parameters: HbF, HbA1c, HbA1 and eAG
· Up to 50 samples/hour with the first result available within 3 minutes
· Less than 1% CV for high-precision HbA1c measurement
· Standard and HbE testing modes
· 40-tube random-access autoloader and closed-tube STAT sampling
· NGSP and IFCC certified/traceable HbA1c results
· 50,000-result storage with bi-directional LIS connectivity
Specifications
| Specification | H50P |
|---|---|
| Product Type | Automated HPLC Analyzer |
| Application | Glycated Hemoglobin / HbA1c Testing |
| Principle | High Performance Liquid Chromatography (HPLC) |
| Parameters | HbF, HbA1c, HbA1, eAG |
| HbA1c Unit | % and mmol/mol |
| eAG Unit | mmol/L and mg/dL |
| Testing Modes | Standard Mode, HbE Mode / Extended Mode |
| Sampling Modes | Autoloader – Whole Blood; Autoloader – Prediluted; Closed Tube – Whole Blood |
| Sample Volume | 16 μL whole blood; 4 μL prediluted |
| Throughput | Up to 50 samples/hour |
| First Result | Within 3 minutes |
| Autoloader Capacity | 40 tubes |
| Precision | CV <1% |
| Reagents | Hemolysis Solution, Eluent A, Eluent B |
| Analytical Column | Long-life HPLC column |
| Data Storage | Up to 50,000 results with chromatograms |
| LIS | Bi-directional LIS |
| Display | 8.4-inch LED touchscreen |
| Power Supply | 100–240 V, 50/60 Hz |
| Operating Temperature | 10–32°C |
| Relative Humidity | 20–85% |
| Dimensions (W × H × D) | 560 × 530 × 572 mm |
| Weight | <65 kg |
Product Details
1. High-Precision HPLC HbA1c Testing
H50P uses High Performance Liquid Chromatography (HPLC), a reference analytical method for HbA1c testing. It is designed to provide reliable separation and measurement of HbA1c and other hemoglobin fractions, with CVs below 1%.
2. Comprehensive Hemoglobin Analysis
The analyzer reports HbA1c, HbF, HbA1 and estimated average glucose (eAG). HbA1c results can be reported in both % and mmol/mol, while eAG is available in mmol/L and mg/dL.
3. Flexible Testing Modes
H50P supports Standard Mode and HbE Mode, allowing laboratories to select the appropriate testing workflow. It also supports whole-blood and prediluted sampling.
4. Automated Sample Handling

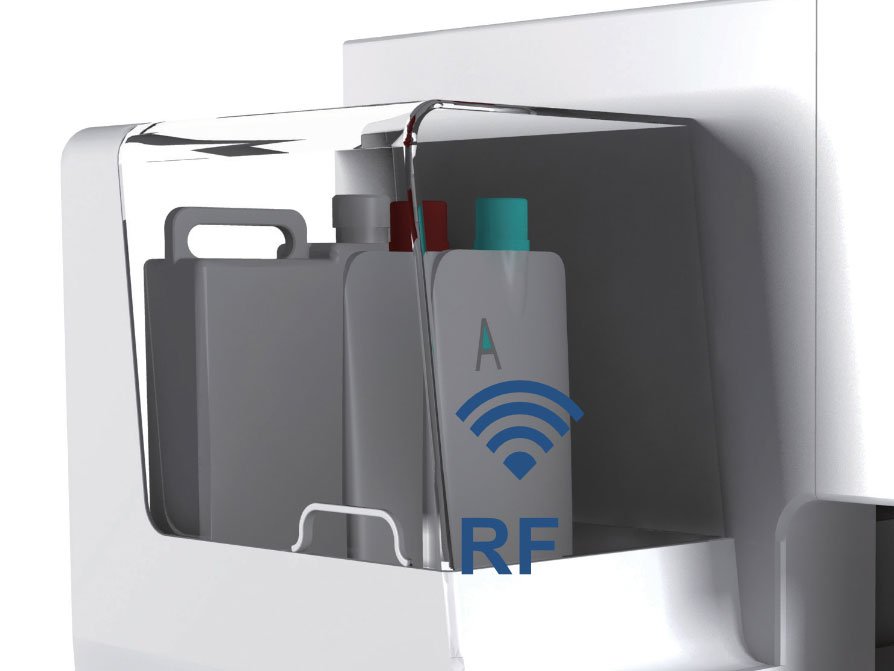

The system features a 40-tube random-access autoloader and closed-tube sampling for STAT testing. Intelligent tube-rack recognition and RF technology for reagent information help simplify routine operation.

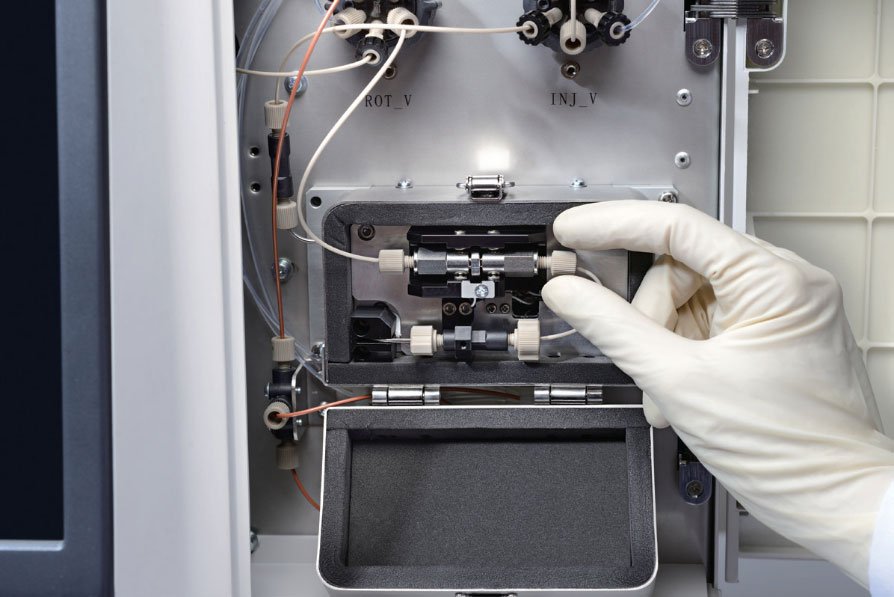

5. Long-Life HPLC Column
The analytical column is designed for easy replacement and long service life. Published technical materials indicate a capacity of at least 3,000 tests, while some later distributor materials specify up to 6,000 tests depending on the column/version.
6. Laboratory Connectivity
H50P stores up to 50,000 test results including chromatograms and supports bi-directional LIS, making it suitable for integration into routine laboratory information workflows.
