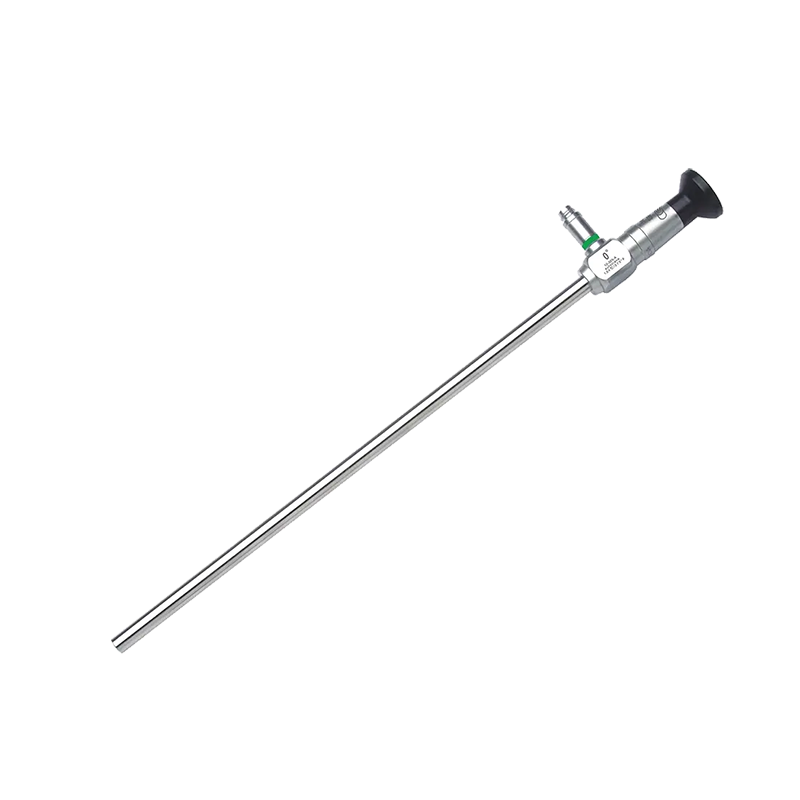

LEPU Laparoscope
Introduction:
Sapphire protection lens, never worn; With aspherical design, wider visual scope;
参考价：
＄147 ~ ＄294
Overview
| Specification Item | Detailed Parameters |
| Product Category | Surgical rigid laparoscope (minimally invasive endoscopic device) |
| Optional Outer Diameter | 5mm, 10mm |
| Optional Viewing Angle | 0° straight view, 30° angled view |
| Front Lens Material | Hardened scratch-resistant optical glass |
Optical Structure | Precision rod-lens optical system + low-loss fiber light guide |
| Main Body Material | Coating-free medical stainless steel |
| Valve Feature | 360° rotatable, maintenance-free anti-winding valve |
| Compatible Auxiliary Equipment | Cold light source, endoscopic camera, pneumoperitoneum machine, laparoscopic power tools |
| Interface Standard | Global universal light guide & camera interfaces |
| Sterilization Method | High-temperature high-pressure autoclave sterilization |
Specifications
长(cm) | 宽(cm) | 高(cm) | 体积(cm³) | 重量(g) |
20 | 10 | 8 | 1600 | 500 |
Product Details
一、 Hero Banner & Core Selling Points
Main Slogan: Premium Medical Laparoscope | High-definition Optical System | Autoclavable Stainless Steel Body | Multi-size Options for General Minimally Invasive Surgery
Highlight Tags: FDA & CE Certifiable | Cross-brand Compatible Interfaces | Maintenance-free Rotary Valve | Complete Surgical Instrument Matching Kit
二、 Basic Product Information
- Product Name: Medical Rigid Laparoscope
- Target Department: General Surgery, Gynecology, Urology, Hepatobiliary Surgery
- Optional Outer Diameter: 5mm / 10mm standard sizes
- Standard Viewing Angle: 0° / 30° customizable
- Matching Supporting Devices: Cold light source, camera host, laparoscopic power system, pneumoperitoneum equipment
- Interface Compatibility: Universal light guide fiber port & camera adapter, compatible with mainstream global medical equipment brands
三、Product Gallery Area

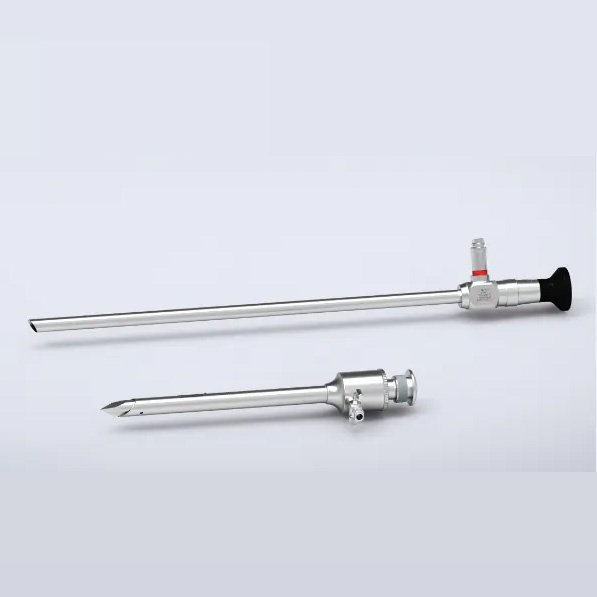

(Product display modules: overall scope shot, optical lens close-up, rotary valve detail, full instrument set, clinical intraoperative effect reference)
四、Core Competitive Advantages
1. High-performance Optical Imaging System
- Adopts imported high-transmittance optical glass and precision rod-lens optical structure, delivering bright, distortion-free surgical field of view
- Hardened anti-scratch protective optical tip, effectively resisting scratch damage during long-term repeated operations
- Low light attenuation fiber light transmission, uniform brightness without dark corners for deep abdominal cavity observation
2. Medical Grade Integrated Stainless Steel Construction
- Entire laparoscope tube and valve assembly forged from medical stainless steel with zero coating, no peeling or rust risks
- Fully autoclavable, compatible with high-temperature high-pressure sterilization for repeated hospital use
- Integrated rotary valve with maintenance-free design, 360° free rotation to avoid cable tangling during minimally invasive procedures
3. Wide Cross-device Compatibility
Standardized universal light guide and camera interfaces. Hospitals do not need to replace existing cold light sources or camera systems, greatly lowering equipment upgrade and procurement costs.
4. Full Set Matching Laparoscopic Instruments
One-stop supporting surgical instrument packages available, including graspers, scissors, trocars and suction devices to cover all routine laparoscopic minimally invasive surgeries. Separate single scope or full set customized quotation services are supported.
5. Ordering Information
| Model | Field of view(°) | Specification |
| J0800B | 70 | 0° Ø10mm (B)x 325mm (A) |
| J0800G | 90 | 0°Ø10mm (B)x325mm (A) |
| J0830B | 70 | 30°Ø10mm (B)x325mm (A) |
| J0830G | 90 | 30°Ø10mm (B)x325mm (A) |
| JY0800S | 70 | 0°Ø10mm (B)x270mm (A) |
| JY0800S2 | 70 | 0°Ø11mm (B)x270mm (A) |
| J1800 | 75 | 0° Ø5mm (B) x 290mm (A) |
| J1830 | 75 | 30° Ø5mm (B) x 290mm (A) |
6. Clinical Application Scenarios
This rigid laparoscope is widely applied in multi-department minimally invasive abdominal surgeries when matched with standard laparoscopic auxiliary equipment:
- General surgery: cholecystectomy, appendectomy, hernia repair, gastrointestinal minimally invasive operations
- Gynecological surgery: ovarian cyst resection, hysterectomy, pelvic lesion treatment
- Urological minimally invasive laparoscopic surgery
- Hepatobiliary and pancreatic minimally invasive exploration and lesion resection
7. Material & Craft Superiority Explanation
1. Optical Tip: Hardened anti-wear optical lens with high light transmittance, no fogging or blurred imaging after long-term cyclic sterilization and surgery
2. Scope Shaft & Valve: One-piece stainless steel forming technology, no electroplated coating, excellent biocompatibility and acid-alkali corrosion resistance
3. Fiber Light Transmission Assembly: Low light decay fiber bundle, stable and consistent intraoperative brightness for deep cavity visualization
4. Mechanical Valve Structure: No easily damaged sealing components, maintenance-free design cuts hospital after-sales maintenance expenses and extends product service life
8. Purchase & Inquiry Module
Important Purchase Reminders
1. Medical device registration certificates, CE/FDA compliance documents differ by country and region. Please contact our sales team to confirm local certification eligibility before placing orders.
2. Flexible quotation modes: single laparoscope unit, full laparoscopic instrument sets, and supporting disposable consumables can be quoted separately.
3. Official Business Contact Email: marketing@lepu-medical.com
4. Bulk hospital tender orders supported; complete bidding technical files, qualification documents can be provided on request.
9. Bottom Product Disclaimer
This product is Class II surgical medical device, only eligible for purchase by formal medical institutions and qualified medical device distributors. Operation must be performed by surgeons with professional laparoscopic minimally invasive surgery qualifications, matched with certified endoscopic imaging, cold light and pneumoperitoneum systems. Product registration accessibility varies across different countries and territories.
