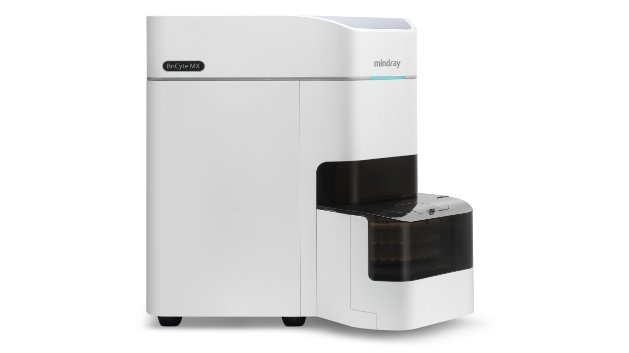

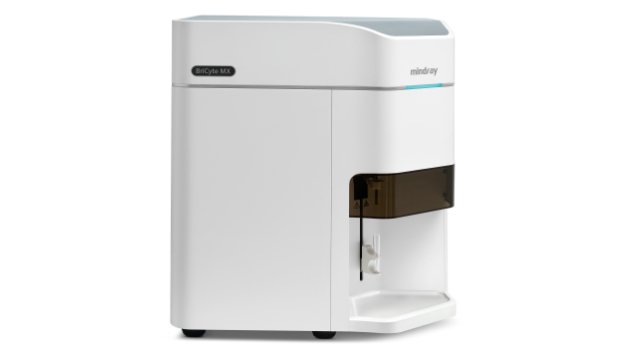

Mindray BriCyte® MX Flow Cytometer
Introduction:
A new addition to Mindray's flow cytometry family，Unlocking Efficient Cytometry with Multi-colored Lasers
参考价：
US$45,000–150,000/unit
Overview
· 2-laser/6-color or 3-laser/14-color configurations for flexible multi-parameter flow cytometry
· Up to 35,000 events/s for high-throughput analysis

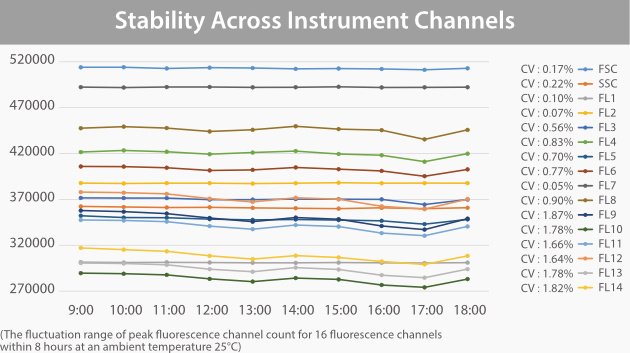

· High fluorescence sensitivity across detection channels
· Automated fluorescence compensation with manual, slider and automatic adjustment modes
· Automated analysis and review for applications such as TBNK, HLA-B27 and Treg
· Absolute counting 2.0 using flow-sensor volume measurement without additional counting beads
· Optional autoloader for higher-throughput workflows
Specifications
| Specification | BriCyte MX |
|---|---|
| Product Type | Flow Cytometer |

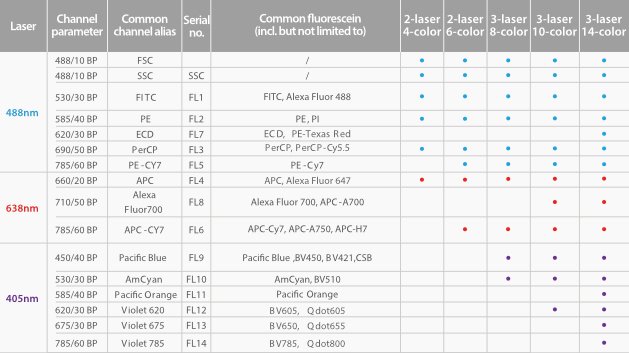

| Configuration | 2 lasers / 6 colors or 3 lasers / 14 colors |
| Laser Options | 2-laser or 3-laser |
| Maximum Colors | 14 |
| Maximum Analysis Speed | Up to 35,000 events/s |
| Carryover | ≤0.1% |
| Optical System | Active temperature control |
| Fluorescence Compensation | Manual / Slider / Automatic |
| Absolute Counting | Flow-sensor volume method |
| Counting Beads | Not required for absolute counting |
| Automated Applications | TBNK, HLA-B27, Treg, etc. |
| Sample Loading | Optional autoloader |
| LIS / Software | Integrated flow-cytometry analysis and reporting software |
| Reagent System | Open reagent system |
Product Details
1. Multi-Color Flow Cytometry
BriCyte MX is designed for multi-parameter cell analysis. The system can be configured with either 2 lasers and 6 colors or 3 lasers and 14 colors, allowing laboratories to select a configuration according to their testing requirements.
2. High-Speed Cell Analysis
With a maximum analysis speed of 35,000 events per second, BriCyte MX is designed for high-throughput laboratories and complex flow-cytometry panels. Carryover is specified at ≤0.1%.
3. Automated Fluorescence Compensation
The system provides multiple compensation modes, including slider adjustment, manual input and automatic compensation. This simplifies compensation setup and helps standardize routine flow-cytometry workflows.
4. Automated Analysis and Review
Built-in algorithms support automated testing and reporting for applications such as TBNK, HLA-B27 and regulatory T-cell (Treg) analysis. Automated review functions can assist with standardizing result verification.
5. Absolute Counting 2.0
BriCyte MX uses a flow-sensor volume method for absolute cell counting. This eliminates the need for additional counting beads and is designed to maintain reliable performance across high, medium and low cell concentrations.
6. Flexible Software
The software provides flexible graphic manipulation, including tile-based layouts and adjustable graphics. A built-in formula editor also allows users to customize reports and combine different result parameters.
