LEPU Real-Time PCR System lepgen-96
Introduction:
Dynamic range:1~1010 Copies,Test method:4＋2 fold fluorescence detection,Heating and cooling Rate:≥6.0°C/sec
参考价：
100,000–225,000/unit
Overview
· 96-well open-platform real-time PCR system
· 4 standard + 2 customizable fluorescence channels
· Heating and cooling rate up to 6.0°C/s
· Dynamic range of 1–10¹⁰ copies
· Supports qualitative, quantitative, genotyping and endpoint analysis
Specifications
| Specification | Lepgen-96 |
|---|---|
| Model | Lepgen-96 |
| Sample Capacity | 96 wells |
| Fluorescence Channels | 4 standard + 2 customizable |
| Dynamic Range | 1–10¹⁰ copies |
| Temperature Range | 4.0–100.0°C |
| Heating/Cooling Rate | ≥6.0°C/s |
| Thermal Accuracy | ≤0.2°C at 90°C |
| Thermal Uniformity | ≤0.5°C at 90°C |
| Hot Cover | 50–108°C |
| Excitation Wavelength | 300–800 nm |
| Detection Wavelength | 500–800 nm |
| Fluorescence Repeatability | CV ≤3% |
| Fluorescence Linearity | r ≥0.99 |
| Compatible Consumables | 0.2 mL tubes, 8-tube strips, 96-well plates |
| Communication | RS232, USB |
| Power Supply | AC 220V, 50Hz, <800VA |
| Dimensions | 490 × 355 × 284 mm |
| Weight | 20 kg |
Product Details
1. 96-Well Open Platform
Lepgen-96 features an open 96-well design and supports 0.2 mL PCR tubes, 8-tube strips and 96-well microplates.
2. Multi-Channel Fluorescence Detection
The system provides four standard fluorescence channels and two customizable channels, supporting up to six fluorescence signals.
3. Fast Thermal Control
Its semiconductor thermoelectric module delivers heating and cooling rates of up to 6.0°C/s, with accurate and uniform temperature control.
4. Advanced Optical System
The LED light source and side-lighting technology improve fluorescence acquisition efficiency and detection consistency between wells.
5. Flexible Molecular Analysis
The system supports qualitative and quantitative analysis, genotyping, endpoint analysis and melting-curve analysis.
Related Products
-

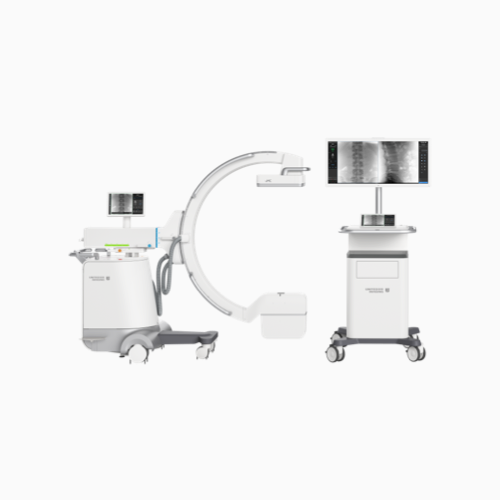

United Imaging Low Dose CMOS Mobile C-arm uMC 560iUnited Imaging -

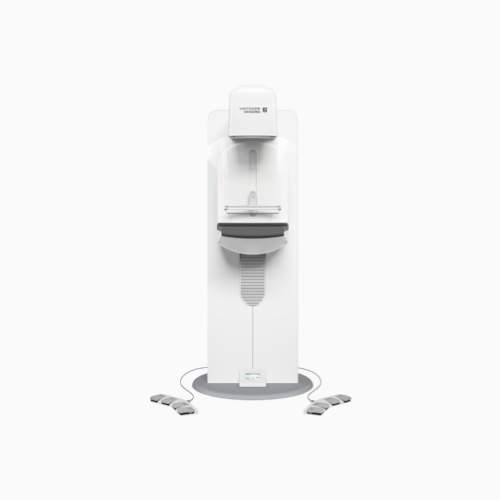

United Imaging Low Dose 3D Mammography System uMammo 890iUnited Imaging -
United Imaging Intelligent Angiography System uAngio® AVIVA CXUnited Imaging -
United Imaging Next Generation Remote-Vision Mobile DR uDR 380i ProUnited Imaging -
United Imaging Automatic Floor Mounted DR uDR 596iUnited Imaging -
United Imaging uCT 960+United Imaging -
United Imaging 40-slice CT uCT 520United Imaging -
United Imaging uAIFI Empowered 1.5T MR uMR 680United Imaging -
United Imaging The World's First Ultra-wide-bore 3T MRI uMR OmegaUnited Imaging -
United Imaging World's First Whole-body UHF 5T MR uMR JupiterUnited Imaging -

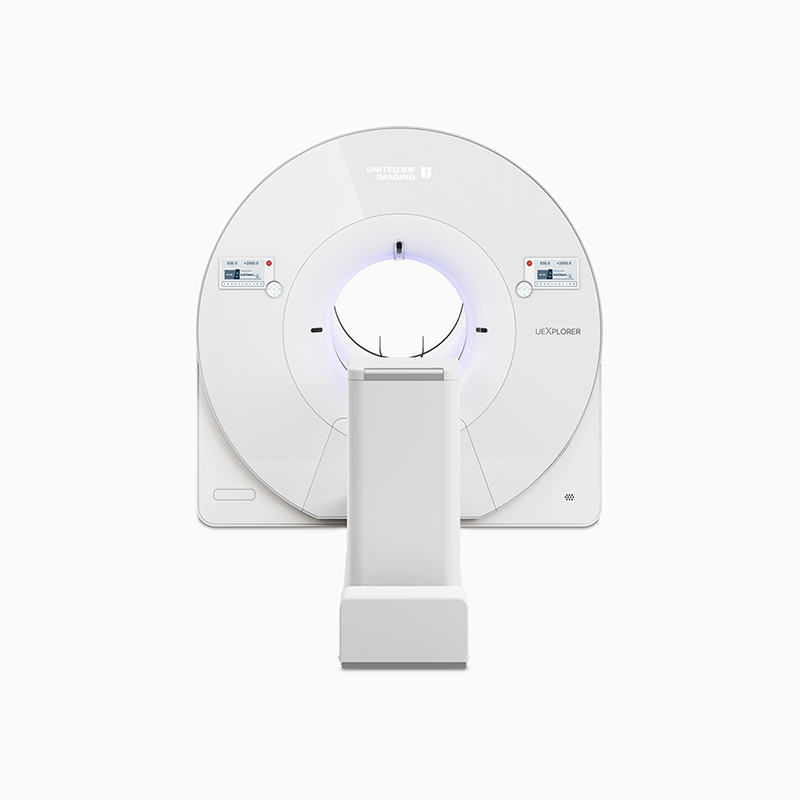

United Imaging The World's First Total-Body PET/CT uEXPLORERUnited Imaging -

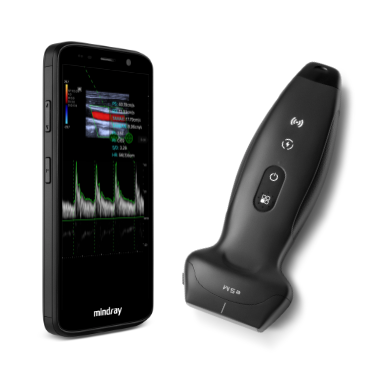

Mindray TE Air e5M Wireless handheld ultrasound systemMindray -
