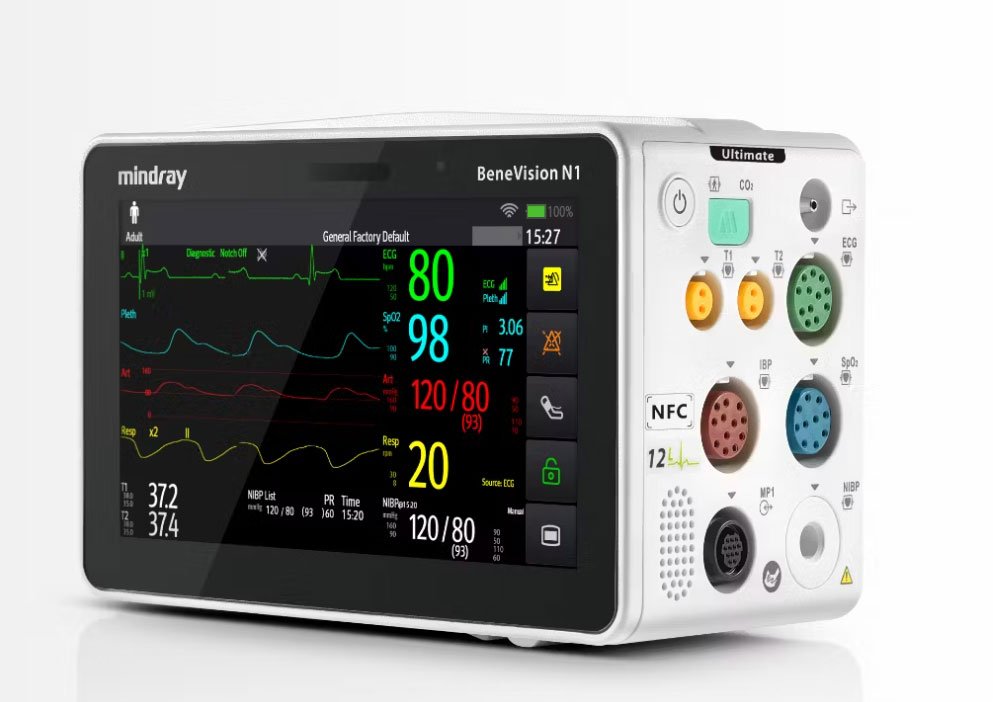

Mindray BeneVision N1
Introduction:
Seamless transfer, supports offline continuation, supports one handed operation
参考价：
US$10,000–15,000 / unit
Overview
· 3-in-1 patient monitoring solution — functions as a transport monitor, multi-parameter module, and bedside monitoring solution.
· Compact and lightweight — approximately 0.95 kg without integrated CO₂.
· 5.5-inch capacitive touchscreen with smartphone-style multi-gesture operation.
· Comprehensive monitoring including ECG, SpO₂, NIBP, IBP, temperature, respiration and optional CO₂.
· Up to 8 hours battery operation in standard configuration.
· Designed for intra- and inter-hospital transport, including land and air transport.
· IP44 protection and 1.2 m drop resistance for transport environments.
· Supports Mirror Mode with external displays and integration with the Mindray BeneVision monitoring platform.
Specifications
| Specification | Details |
|---|---|
| Product Type | Transport / Multi-Parameter Patient Monitor |
| Model | BeneVision N1 |
| Manufacturer | Mindray |
| Display | 5.5-inch capacitive touchscreen |
| Display Resolution | 1280 × 720 |
| ECG | 3/5/6-lead, optional 12-lead |
| ECG Functions | Arrhythmia, ST Segment, QT Analysis |
| SpO₂ | Masimo SET® / compatible configurations |
| NIBP | Non-invasive Blood Pressure |
| IBP | Up to 2 invasive pressure channels |
| Temperature | 2 channels |
| Respiration | Yes |
| CO₂ | Optional integrated/external CO₂ modules |
| Other Parameters | PR, PAWP, O₂ depending on configuration |
| Battery | Rechargeable Li-ion, 2500 mAh, 7.56 VDC |
| Battery Runtime | >8 hours without internal CO₂; >3 hours with internal CO₂ under specified test conditions |
| Dimensions | Approx. 150 × 103 × 81 mm |
| Weight | 0.95 kg without integrated CO₂; approx. 1.3 kg with integrated CO₂ |
| Ingress Protection | IP44 for N1 main unit |
| Drop Resistance | 1.2 m, all six surfaces |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -30°C to 70°C for main unit |
| Power Input | 12 VDC |
| Applications | ICU, CCU, emergency, operating room, neonatal care, intra-hospital and inter-hospital transport |
Product Details
1. Compact 3-in-1 Design
The BeneVision N1 combines three functions in a single compact device. It can work as a standalone transport monitor, serve as a multi-parameter module for BeneVision N-Series bedside monitors, or connect to an external display for bedside monitoring.
The monitor can be disconnected from a bedside system and used as a wireless transport monitor while maintaining patient monitoring continuity.
2. Comprehensive Patient Monitoring
N1 supports a broad range of physiological parameters, including ECG, respiration, SpO₂, pulse rate, NIBP, IBP, temperature and CO₂. ECG configurations can support 3-, 5-, 6- or 12-lead monitoring, with arrhythmia, ST and QT analysis available depending on configuration.

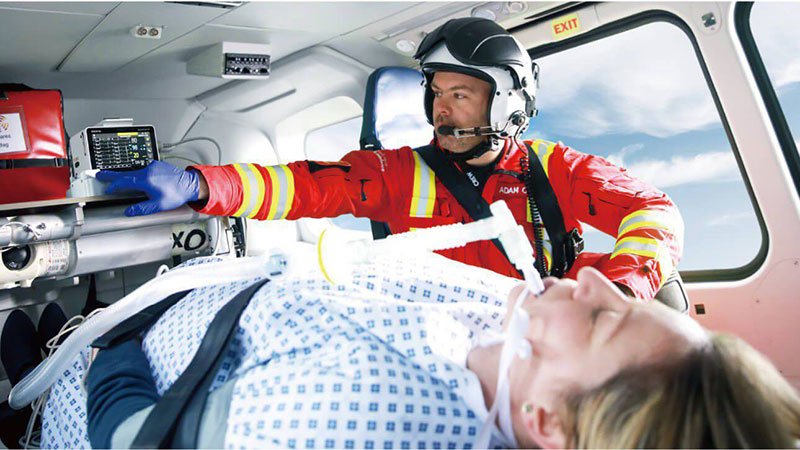

3. Designed for Patient Transport
The N1 is specifically designed for intra- and inter-hospital patient transport. It complies with transport-related standards including EN1789, EN13718-1 and IEC60601-1-12, with configurations supporting land and air transport applications.
Its main unit has IP44 protection and is designed to withstand a 1.2 m drop on all six faces, making it suitable for demanding transport environments.
4. Battery and Connectivity
The rechargeable lithium-ion battery provides more than 8 hours of operation in the standard configuration under specified test conditions. With integrated CO₂ and additional monitoring functions, runtime is specified at more than 3 hours under the corresponding test conditions.
N1 can connect to the BeneVision monitoring platform and supports wireless data continuity. Its Mirror Mode allows information to be viewed simultaneously on the N1 and a compatible external display.
