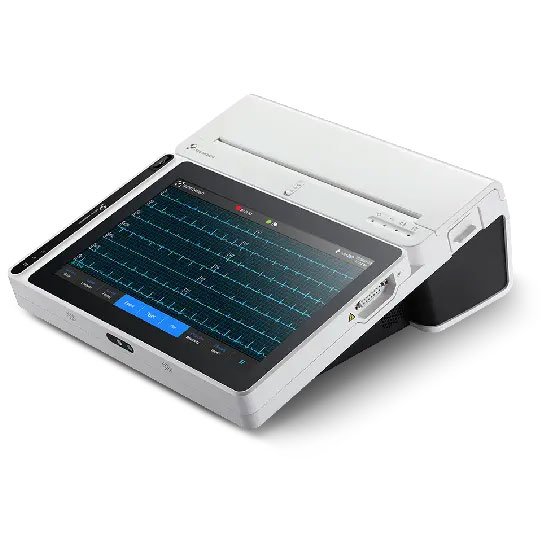

LEPU NeoECG T180 Resting Electrocardiograph
Introduction:
Provide 8 sampling modes. Portable design, compact in size. Super storage capacity. Internal power supply.
参考价：
US$1,500–2,500 / unit
Overview
· Tablet-style Resting ECG
· 10.1-inch high-resolution color touchscreen
· Supports synchronous 9/12/15/18-lead ECG
· Built-in rechargeable lithium battery
· Up to 10 hours standby
· Stores at least 10,000 ECG records
· Glasgow ECG analysis and diagnosis
· AI-assisted ECG analysis based on CWECG-SLA
· Supports Wi-Fi, 4G and LAN
· Multiple data formats including PDF, DICOM, HL7 and SCP
· Barcode scanning for patient information
· Compact and portable design
· Optional integrated printing dock
· Suitable for hospitals, clinics and other medical institutions
Specifications
| Specification | NeoECG T180 |
| Product Type | Resting Electrocardiograph |
| Manufacturer | Lepu Medical |
| Model | NeoECG T180 |
| Display | 10.1-inch Color Touchscreen |
| Resolution | 1280 × 800 |
| ECG Leads | 9 / 12 / 15 / 18 leads |
| ECG Acquisition | Synchronous acquisition |
| Heart Rate Range | 30–300 bpm |
| A/D Conversion | 24 bit |
| Sampling Rate | 32,000 points/sec |
| Amplitude Resolution | 0.95 μV/LSB |
| CMRR | ≥140 dB with AC filter / ≥120 dB without AC filter |
| Sampling Modes | Pre-sampling / Real-time / Periodic / Trigger |
| Additional Analysis | RR / HRV / Medicine Test / ECG Event |
| Pacemaker Detection | Supported |
| ECG Storage | ≥10,000 conventional ECG records |
| Battery | Rechargeable Lithium Battery |
| Standby Time | ≥10 hours |
| Connectivity | Wi-Fi / 4G / LAN |
| External Interfaces | USB |
| Data Formats | CarewellECG / PDF / BMP / HL7 / DICOM / SCP |
| ECG Analysis | Glasgow / CWECG-SLA |
| Printer | Integrated printing dock |
| Patient Information | Virtual Keyboard / Barcode Scanning |
| Operating System | Android |
| Dimensions | Approx. 197 × 112 × 26 mm |
| Weight | Approx. 0.8 kg |
Product Details
1. 10.1-inch Touchscreen
The NeoECG T180 adopts a 10.1-inch high-resolution color touchscreen with a tablet-style design, providing intuitive operation and clear ECG waveform visualization.
2. 9/12/15/18-lead ECG
The system supports synchronous acquisition and display of 9-, 12-, 15- and 18-lead ECG waveforms, allowing more comprehensive cardiac electrical information to be obtained.
3. Intelligent ECG Analysis
The T180 integrates Glasgow ECG analysis and Lepu's CWECG-SLA algorithm for automatic waveform analysis and diagnostic assistance. The AI-ECG platform claims an average accuracy rate of 95.2% based on testing with 1 million independent MIT test data.
4. Multiple ECG Analysis Modes
In addition to routine ECG analysis, the device supports RR analysis, HRV, medicine test, ECG event mode and automatic pacing detection, providing additional clinical analysis functions.
5. Large Data Storage
The T180 can store at least 10,000 conventional ECG records. Patient information can be entered through the touchscreen or barcode scanner, improving workflow efficiency.

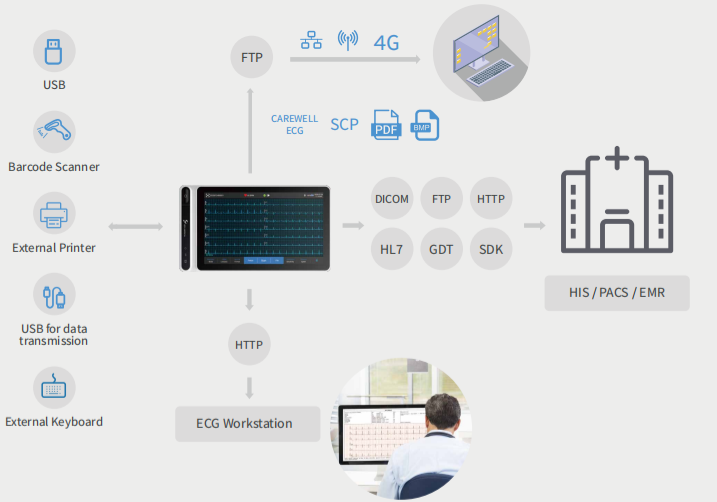

6. Network & Data Connectivity
The device supports Wi-Fi, 4G and LAN connectivity and can transmit ECG data to PCs, third-party systems and ECG workstations. It supports common medical data formats including DICOM and HL7 for integration with hospital information systems.
