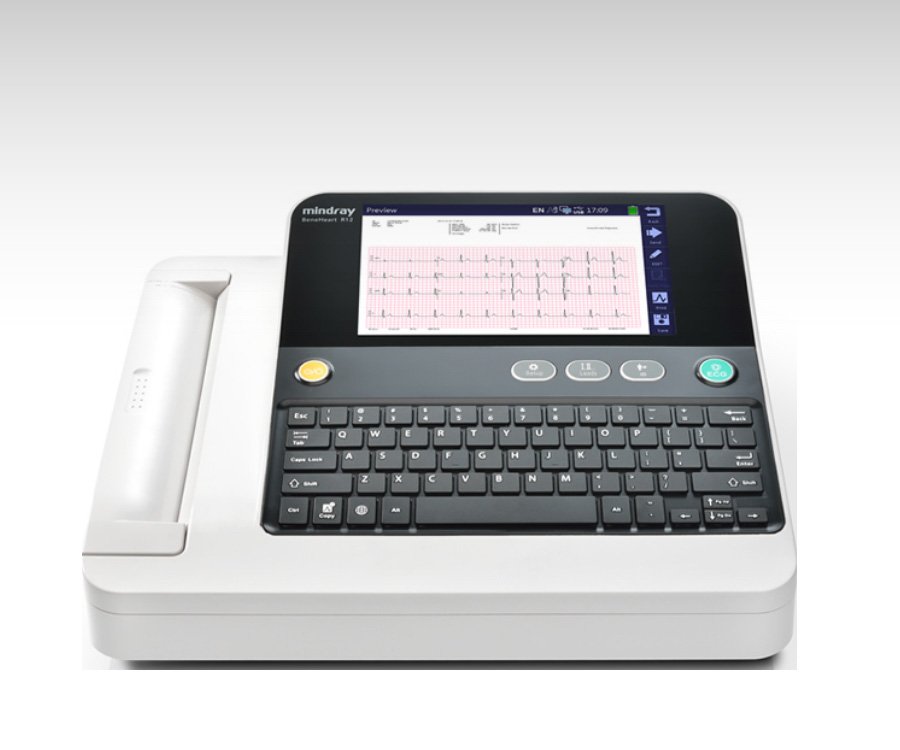

Mindray 12 channel electrocardiograph BeneHeart R12
Introduction:
Modern and practical design,Minimized workload and optimized workflow,Reliable diagnostic analysis and outstanding performance,IT solutions/Data transfer
参考价：
US$1,500–2,500 / unit
Overview
· 12-channel resting ECG
· 8-inch color TFT LCD display
· University of Glasgow 12-lead ECG analysis
· Supports adult and pediatric ECG analysis
· Pacemaker detection
· Up to 800 ECG records internal storage
· Built-in thermal printer
· Optional barcode scanner and touchscreen
· Wired / wireless ECG data transfer
· Supports PDF and XML export
· 4500 mAh rechargeable Li-ion battery
· More than 3.5 hours continuous operation
· Compact and portable design
Specifications
| Specification | BeneHeart R12 |
|---|---|
| Product Type | Resting Electrocardiograph |
| Manufacturer | Mindray |
| Model | BeneHeart R12 |
| ECG Type | 12-lead ECG |
| ECG Acquisition | Pre- or Post-acquisition |
| ECG Sampling Rate | 1,000 samples/sec/channel |
| Pacemaker Detection Sampling Rate | 16,000 samples/sec/channel |
| A/D Conversion | 24-bit |
| Resolution | 1 μV/LSB |
| Frequency Response | 0.05–150 Hz |
| CMRR | ≥110 dB with AC filter off |
| Heart Rate Range | 30–300 BPM |
| Display | 8-inch Color TFT LCD |
| Display Resolution | 800 × 480 pixels |
| Internal Storage | Up to 800 ECG records |
| ECG Analysis | University of Glasgow ECG Analysis |
| Pacemaker Detection | Supported |
| Thermal Printer | Built-in |
| Printer Channels | Up to 12 traces |
| Paper Speed | 5 / 12.5 / 25 / 50 mm/s |
| Paper Type | Z-fold Thermal Paper |
| Connectivity | LAN / Wi-Fi* |
| USB | Supported |
| Barcode Scanner | Optional |
| Touchscreen | Optional |
| Battery | 4500 mAh Rechargeable Li-ion |
| Battery Runtime | >3.5 hours continuous operation / 400 ECGs |
| AC Input | 100–240 VAC ±10% |
| Dimensions | 365 × 305 × 128 mm |
| Weight | Approx. 4.8–4.9 kg |
Product Details
1. 12-Lead ECG Acquisition
The BeneHeart R12 provides 12-lead resting ECG acquisition with a 1,000 samples/second/channel sampling rate, supporting high-quality ECG waveform acquisition and analysis.

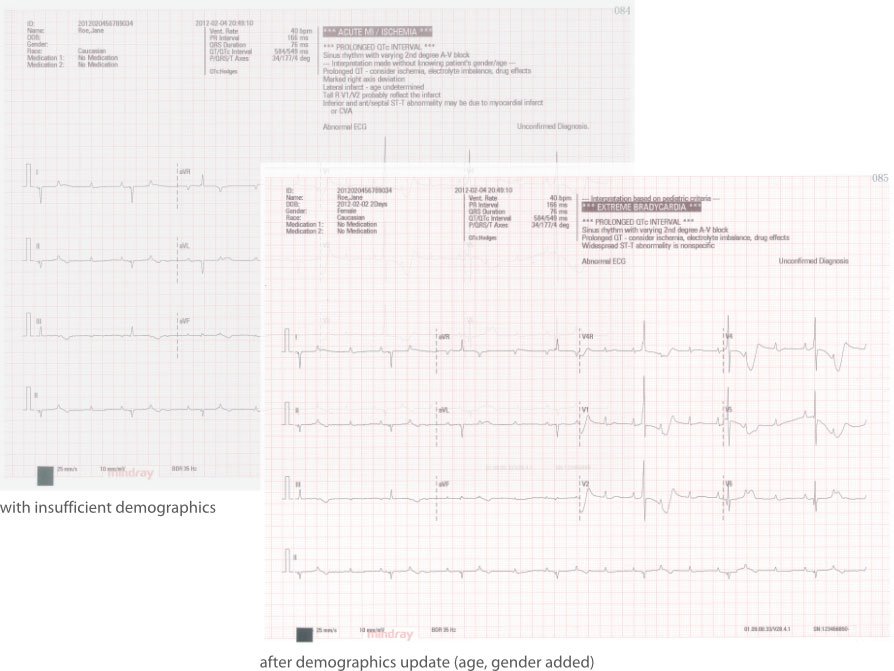

2. Glasgow ECG Analysis

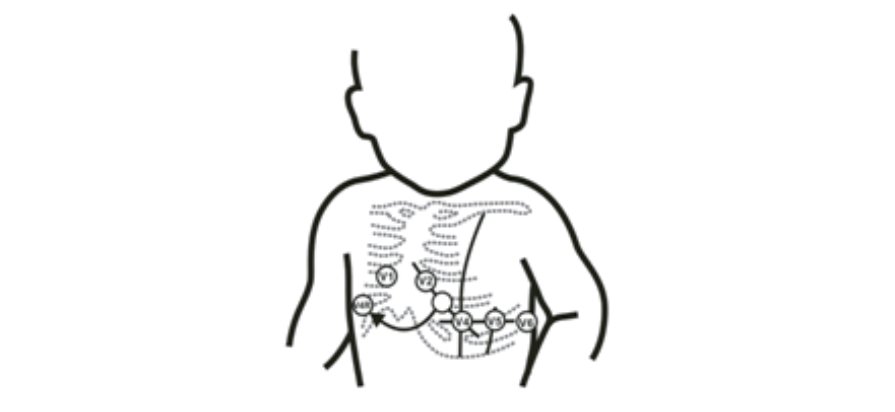

The system integrates the University of Glasgow 12-lead ECG analysis program, using patient information such as age, gender and race to support ECG interpretation for adults and children.
3. Pacemaker Detection
The R12 supports digital pacemaker detection, helping identify atrial, ventricular and AV sequential pacing and reducing the risk of missing pacemaker-related information during ECG interpretation.

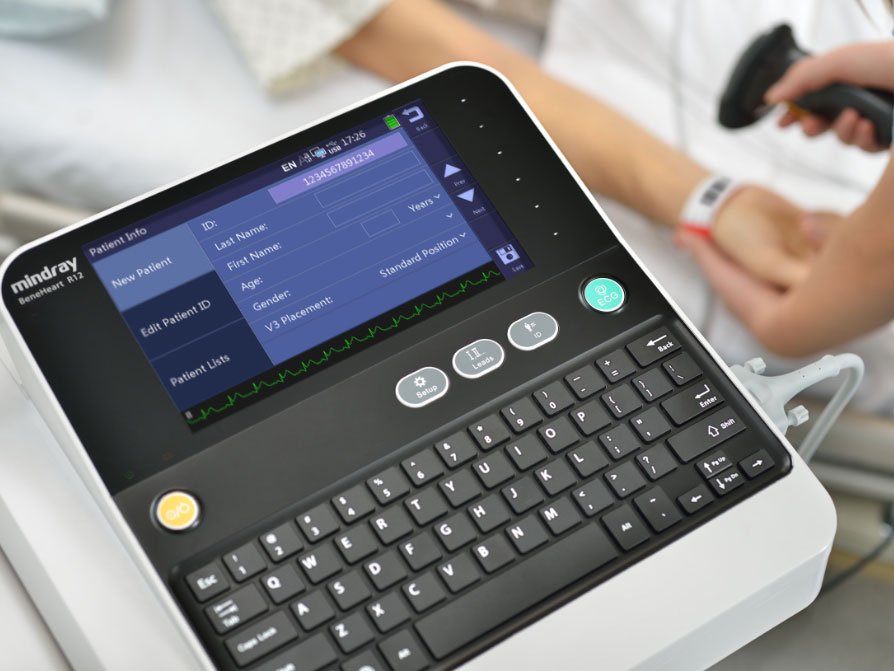

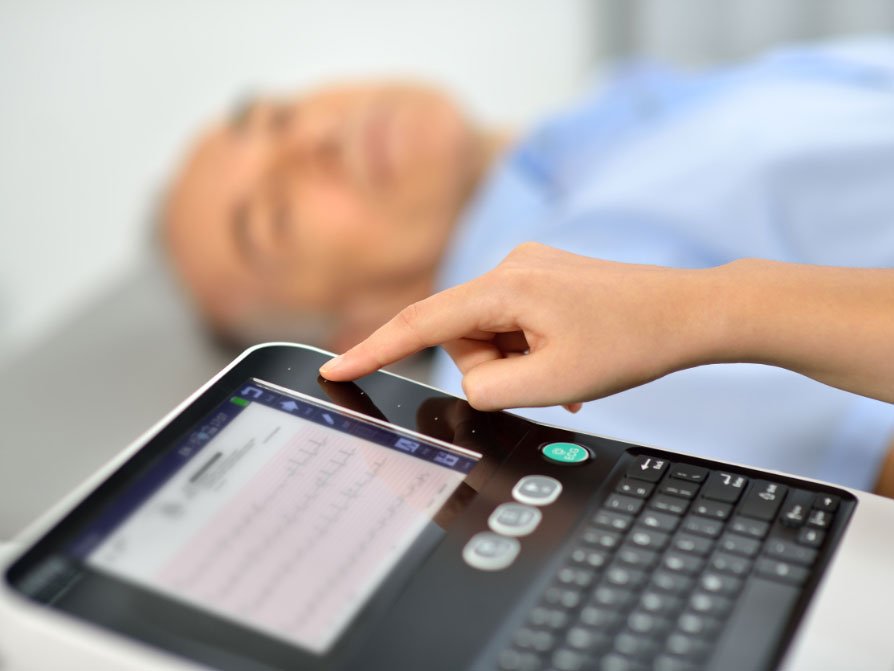

4. 8-inch Color Display
The 8-inch color TFT LCD provides a clear view of ECG waveforms, patient information, heart rate, lead labels and other operating information. An optional touchscreen is available for users who prefer touch operation.
5. Built-in Thermal Printer
The integrated thermal recorder can print up to 12 ECG waveform channels and supports paper speeds of 5, 12.5, 25 and 50 mm/s.

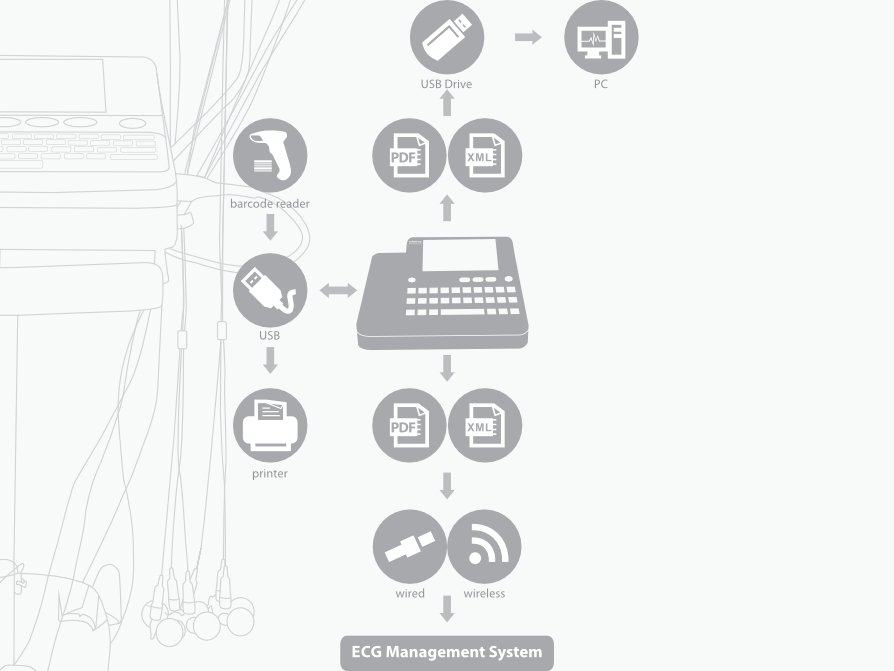

6. Data Management
The R12 can store up to 800 ECG records internally. ECG reports can be reviewed and re-analyzed, while PDF and XML formats can be used for digital export and data management.
7. Portable Operation
The built-in 4500 mAh lithium-ion battery provides more than 3.5 hours of continuous operation or approximately 400 ECG recordings on a full charge, making the device suitable for mobile clinical use.
