Mindray Auto Urine Sediment Analyzer EH-2090
Introduction:
Precise and complete capture of pathological features.18 reportable parameters: RBC, WBC, WBCC, BACT, BACTc, BACTr, YST, SEC, NEC, CRYS, Caoxm, Caoxd, URA, TRP, HYAC, UNCC, MUC, SPRM.
参考价：
US$15,000–25,000/unit
Overview
· Fully automated urine sediment analysis for high-volume clinical laboratories
· 18 reportable parameters covering RBC, WBC, bacteria, yeast, crystals, casts and other formed elements
· 2K full-color imaging with multi-depth-of-field fusion for clear visualization of pathological features
· Up to 120 tests/hour throughput
· Up to 60 clear images per sample to improve detection of positive samples
· 360° barcode scanning, 100-sample loading and bi-directional LIS connectivity
Specifications
| Specification | EH-2090 |
|---|---|
| Product Type | Auto Urine Sediment Analyzer |
| Application | Urine formed-element analysis / urinalysis |
| Reportable Parameters | 18 |
| Reportable Parameters | RBC, WBC, WBCC, BACT, BACTc, BACTr, YST, SEC, NEC, CRYS, Caoxm, Caoxd, URA, TRP, HYAC, UNCC, MUC, SPRM |
| Imaging Technology | 2K full-color imaging |
| Imaging Method | Multi-depth-of-field fusion |
| Maximum Images | Up to 60 clear images/sample |
| Maximum Throughput | 120 tests/hour |
| Sample Loading | 100 samples |
| Barcode | 360° barcode scanning |
| LIS | Bi-directional LIS |
| Workflow | Fully automated |
| Variants | EH-2090B / EH-2090C and Pro versions |
Product Details

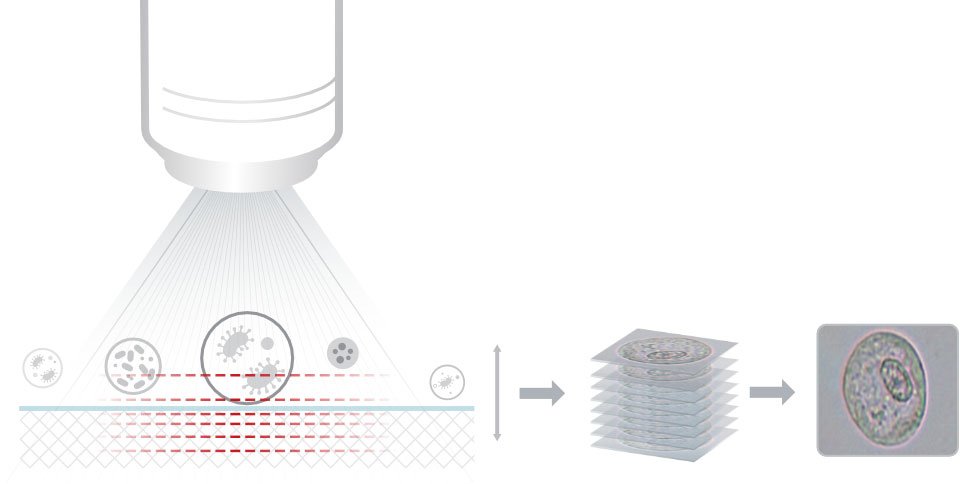

1. Multi-Depth-of-Field Fusion
The analyzer combines multiple focal depths to capture urine sediment particles more completely, helping identify pathological formed elements that may be difficult to observe with conventional imaging.
2. 2K Full-Color Imaging
EH-2090 uses 2K full-color imaging designed to provide microscopic-like visualization. This can reduce the need for manual microscopic review of positive samples and facilitate faster result verification.

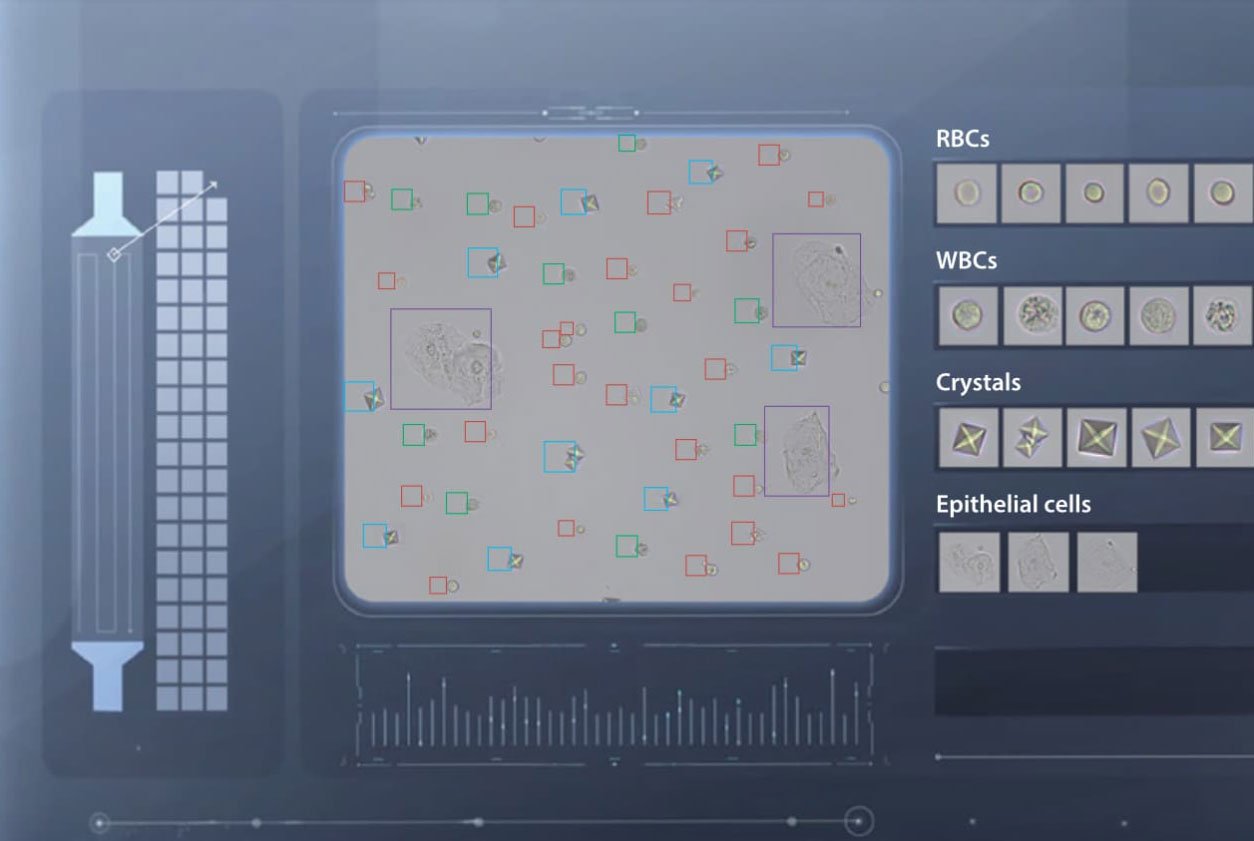

3. High-Volume Particle Analysis
The system can capture up to 60 clear images per sample and applies image-analysis algorithms to identify different urine formed elements, helping reduce the risk of missing positive findings.
4. 18-Parameter Reporting
The analyzer reports 18 parameters, including red blood cells, white blood cells, bacteria, yeast, epithelial cells, crystals, casts and mucus, providing a comprehensive urine sediment analysis.
5. Automated Workflow
With 100-sample loading, 360° barcode scanning and bi-directional LIS connectivity, EH-2090 is designed for continuous automated laboratory workflows and sample traceability.
6. RBC Phase Analysis
Mindray's Chinese product information states that the system comes standard with RBC phase analysis, providing information on RBC size, morphology and hemoglobin-related characteristics to assist in evaluating the possible source of hematuria.
